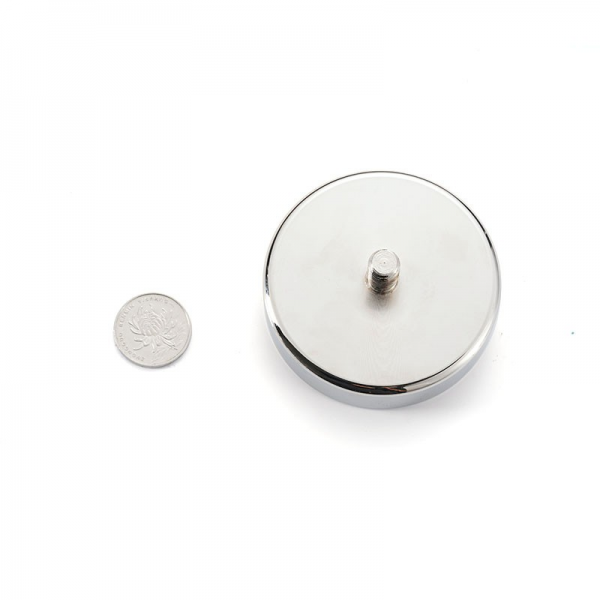

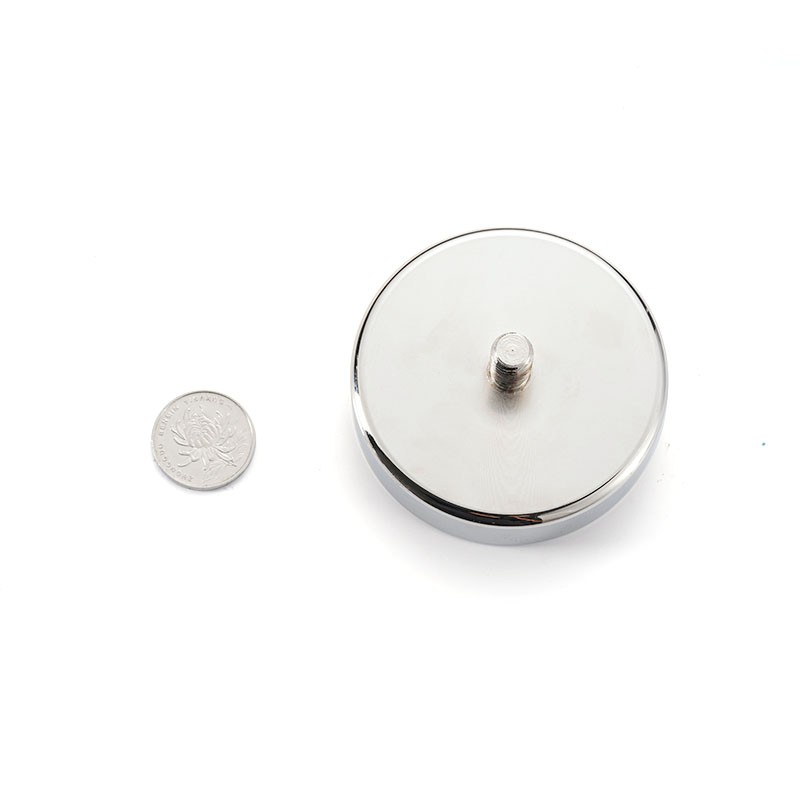

Cup magnet Ø 75 x 35 mm, with M10 Male threaded stud - Holds 164 kgs

Item #: CUP-C75

Item Code: CUP-C75

LOADING IMAGES

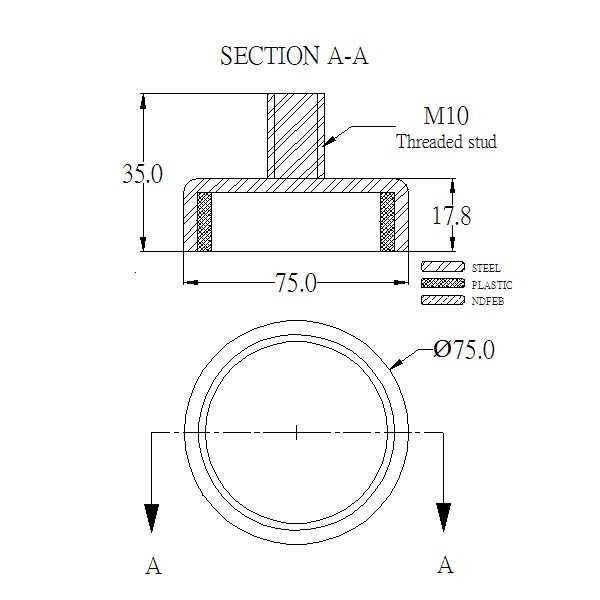

Dimensions & Specs
Item ID CUP-C75
Material NdFeB
Pot diameter (D) 75 mm
Total height (H2) 35 mm
Pot height (H1) 17.8 mm
Thread M M10 Male threaded stud
Coating Nickel-plated (Ni)
Steel Q235 (China)
Pull Force approx. 164kg ( approx. 1607.2 N)
Max. working temperature 80°C
Net Weight 510 g
Item ID CUP-C75
Material NdFeB
Pot diameter (D) 2.953 "
Total height (H2) 1.378 "
Pot height (H1) 0.701 "
Thread M M10 Male threaded stud
Coating Nickel-plated (Ni)
Steel Q235 (China)
Pull Force approx. 361.554 lbs ( approx. 1607.2 N)
Max. working temperature 80°C
Net Weight 17.99 oz
Product Details...

Item Description

This round base neodymium magnet has approx. 164 kg (approx. 361.554 lbs) holding power. The threaded stud is M10. is when the cup directly contacts with the steel. The outer diameter of the magnet is 75 mm (2.953 "). The total thickness of the assembly is 35 mm (1.378 ").

Technical Documentation

  • If you can’t find what you want,just send us an inquiry and we will be happy to make it for you!
