Cup magnet Ø 60 x 31.5 mm, with M8 Male threaded stud - Holds 113 kgs

Item #: CUP-C60

Item Code: CUP-C60

LOADING IMAGES

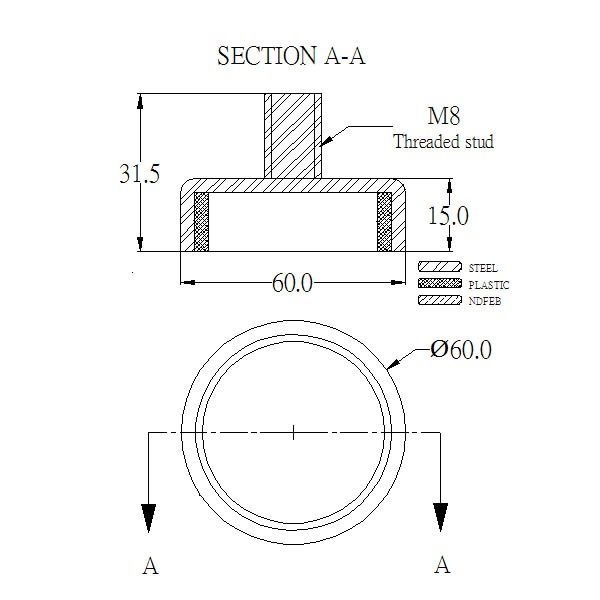

Dimensions & Specs
Item ID CUP-C60
Material NdFeB
Pot diameter (D) 60 mm
Total height (H2) 31.5 mm
Pot height (H1) 15 mm
Thread M M8 Male threaded stud
Coating Nickel-plated (Ni)
Steel Q235 (China)
Pull Force approx. 113kg ( approx. 1107.4 N)
Max. working temperature 80°C
Net Weight 256 g
Item ID CUP-C60
Material NdFeB
Pot diameter (D) 2.362 "
Total height (H2) 1.24 "
Pot height (H1) 0.591 "
Thread M M8 Male threaded stud
Coating Nickel-plated (Ni)
Steel Q235 (China)
Pull Force approx. 249.12 lbs ( approx. 1107.4 N)
Max. working temperature 80°C
Net Weight 9.03 oz
Product Details...

Item Description

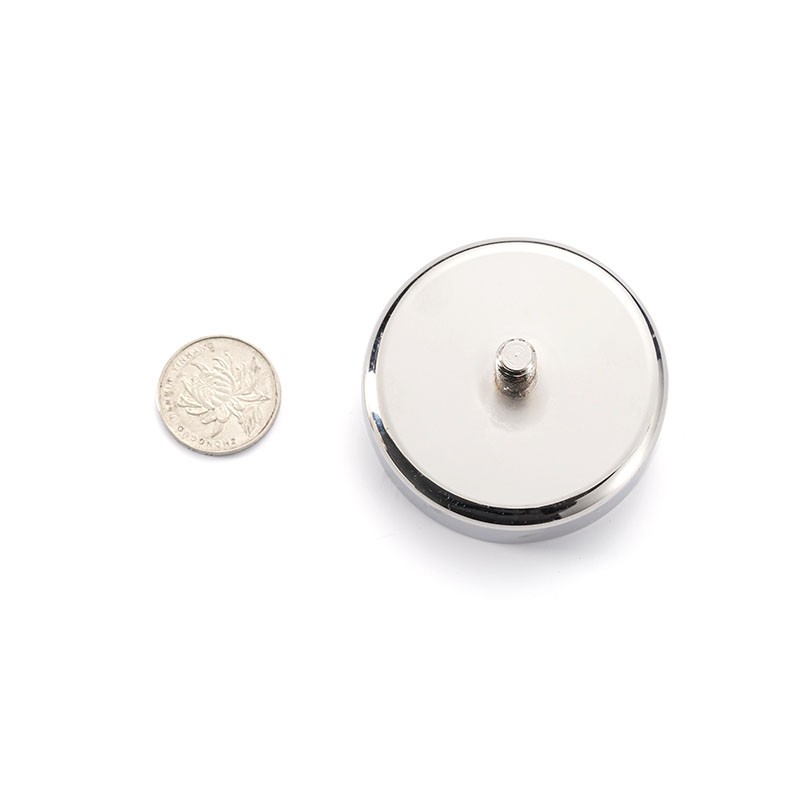

This round base neodymium magnet has approx. 113 kg (approx. 249.12 lbs) holding power. The threaded stud is M8. is when the cup directly contacts with the steel. The outer diameter of the magnet is 60 mm (2.362 "). The total thickness of the assembly is 31.5 mm (1.24 ").

Technical Documentation

  • If you can’t find what you want,just send us an inquiry and we will be happy to make it for you!
