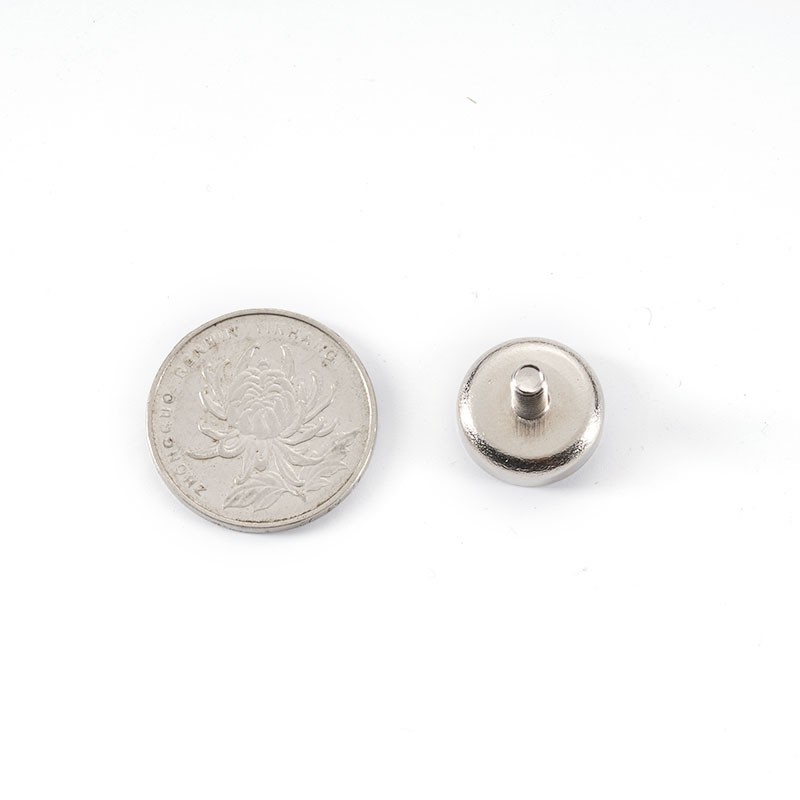

Cup magnet Ø 16 x 14 mm, with M4 Male threaded stud - Holds 5.5 kgs

Item #: CUP-C16

Item Code: CUP-C16

LOADING IMAGES
Dimensions & Specs
Item ID CUP-C16
Material NdFeB

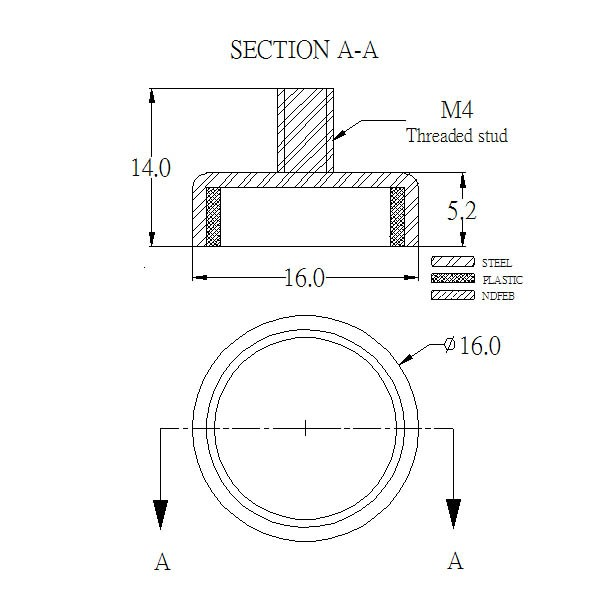

Pot diameter (D) 16 mm
Total height (H2) 14 mm
Pot height (H1) 5.2 mm
Thread M M4 Male threaded stud
Coating Nickel-plated (Ni)
Steel Q235 (China)
Pull Force approx. 5.5kg ( approx. 53.9 N)
Max. working temperature 80°C
Net Weight 9 g
Item ID CUP-C16
Material NdFeB
Pot diameter (D) 0.63 "
Total height (H2) 0.551 "
Pot height (H1) 0.205 "
Thread M M4 Male threaded stud
Coating Nickel-plated (Ni)
Steel Q235 (China)
Pull Force approx. 12.125 lbs ( approx. 53.9 N)
Max. working temperature 80°C
Net Weight 0.317 oz
Product Details...

Item Description

This round base neodymium magnet has approx. 5.5 kg (approx. 12.125 lbs) holding power. The threaded stud is M4. is when the cup directly contacts with the steel. The outer diameter of the magnet is 16 mm (0.63 "). The total thickness of the assembly is 14 mm (0.551 ").

Technical Documentation

  • If you can’t find what you want,just send us an inquiry and we will be happy to make it for you!
