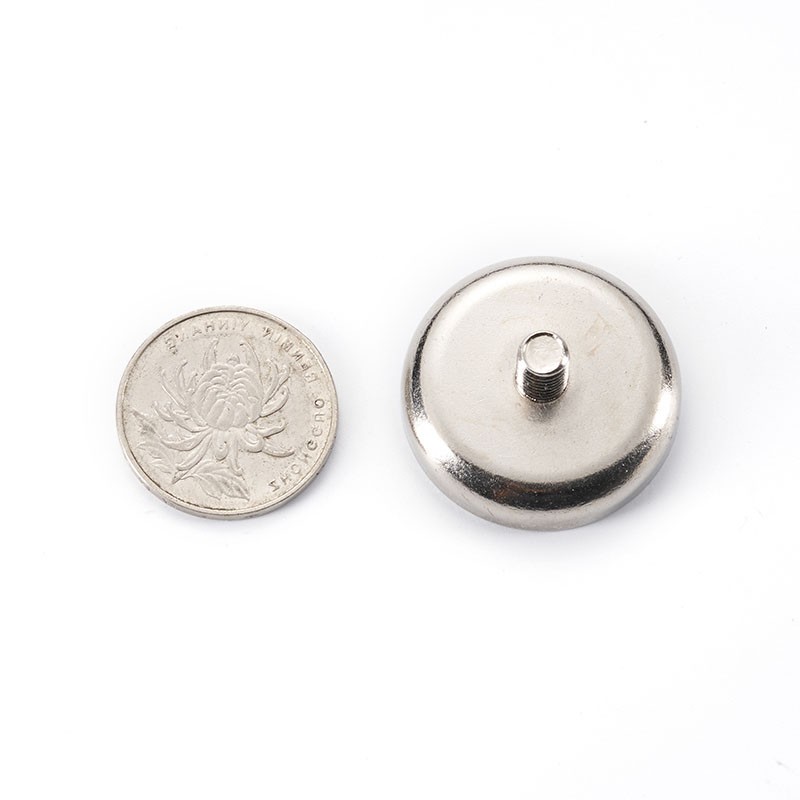

Cup magnet Ø 36 x 17.6 mm, with M6 Male threaded stud - Holds 41 kgs

Item #: CUP-C36

Item Code: CUP-C36

LOADING IMAGES

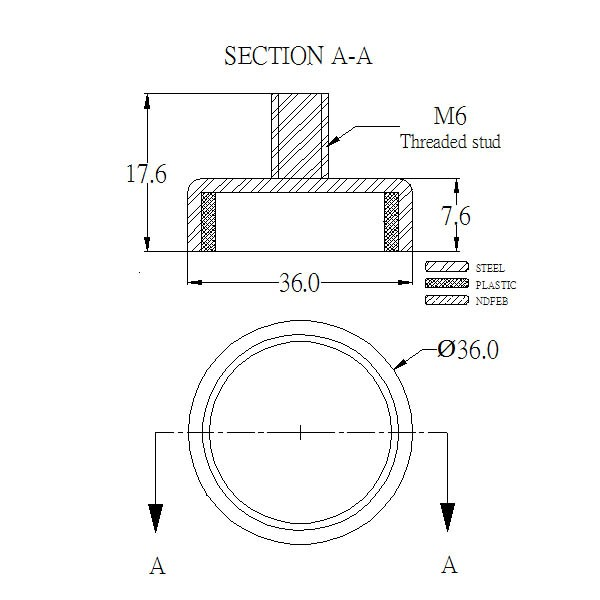

Dimensions & Specs
Item ID CUP-C36
Material NdFeB
Pot diameter (D) 36 mm
Total height (H2) 17.6 mm
Pot height (H1) 7.6 mm
Thread M M6 Male threaded stud
Coating Nickel-plated (Ni)
Steel Q235 (China)
Pull Force approx. 41kg ( approx. 401.8 N)
Max. working temperature 80°C
Net Weight 54 g
Item ID CUP-C36
Material NdFeB
Pot diameter (D) 1.417 "
Total height (H2) 0.693 "
Pot height (H1) 0.299 "
Thread M M6 Male threaded stud
Coating Nickel-plated (Ni)
Steel Q235 (China)
Pull Force approx. 90.389 lbs ( approx. 401.8 N)
Max. working temperature 80°C
Net Weight 1.905 oz
Product Details...

Item Description

This round base neodymium magnet has approx. 41 kg (approx. 90.389 lbs) holding power. The threaded stud is M6. is when the cup directly contacts with the steel. The outer diameter of the magnet is 36 mm (1.417 "). The total thickness of the assembly is 17.6 mm (0.693 ").

Technical Documentation

  • If you can’t find what you want,just send us an inquiry and we will be happy to make it for you!
