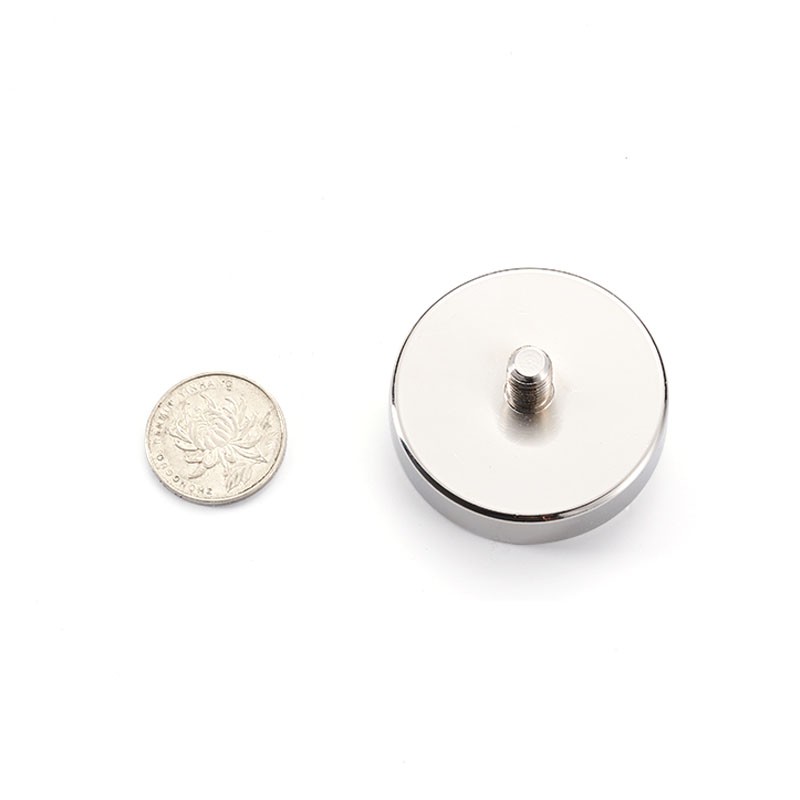

Cup magnet Ø 48 x 24 mm, with M8 Male threaded stud - Holds 81 kgs

Item #: CUP-C48

Item Code: CUP-C48

LOADING IMAGES

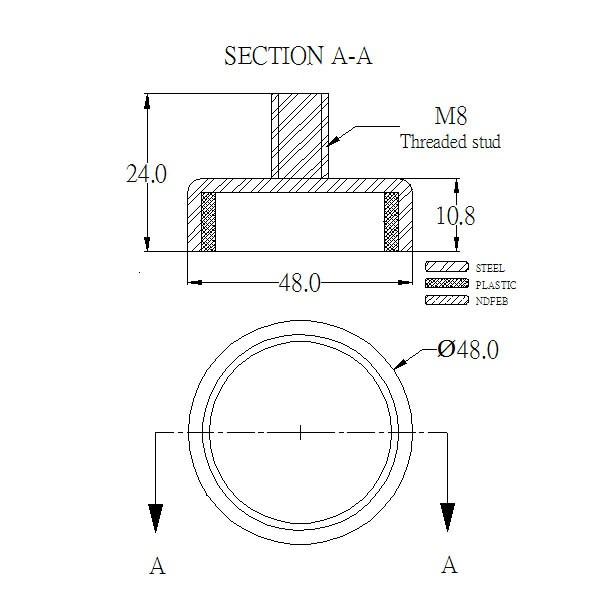

Dimensions & Specs
Item ID CUP-C48
Material NdFeB
Pot diameter (D) 48 mm
Total height (H2) 24 mm
Pot height (H1) 10.8 mm
Thread M M8 Male threaded stud
Coating Nickel-plated (Ni)
Steel Q235 (China)
Pull Force approx. 81kg ( approx. 793.8 N)
Max. working temperature 80°C
Net Weight 130 g
Item ID CUP-C48
Material NdFeB
Pot diameter (D) 1.89 "
Total height (H2) 0.945 "
Pot height (H1) 0.425 "
Thread M M8 Male threaded stud
Coating Nickel-plated (Ni)
Steel Q235 (China)
Pull Force approx. 178.573 lbs ( approx. 793.8 N)
Max. working temperature 80°C
Net Weight 4.586 oz
Product Details...

Item Description

This round base neodymium magnet has approx. 81 kg (approx. 178.573 lbs) holding power. The threaded stud is M8. is when the cup directly contacts with the steel. The outer diameter of the magnet is 48 mm (1.89 "). The total thickness of the assembly is 24 mm (0.945 ").

Technical Documentation

  • If you can’t find what you want,just send us an inquiry and we will be happy to make it for you!
