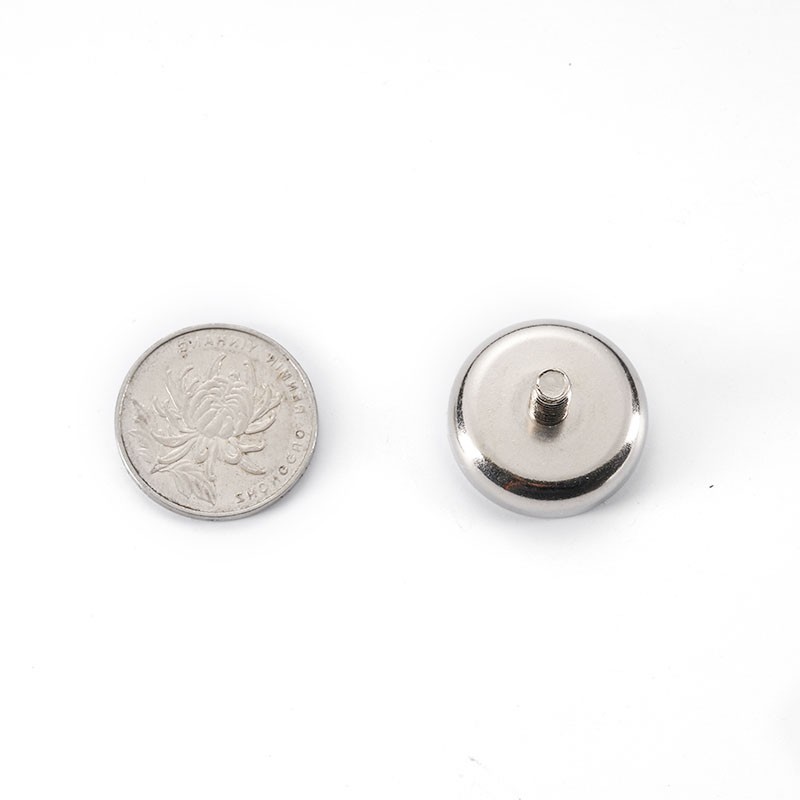

Cup magnet Ø 25 x 17 mm, with M5 Male threaded stud - Holds 22 kgs

Item #: CUP-C25

Item Code: CUP-C25

LOADING IMAGES

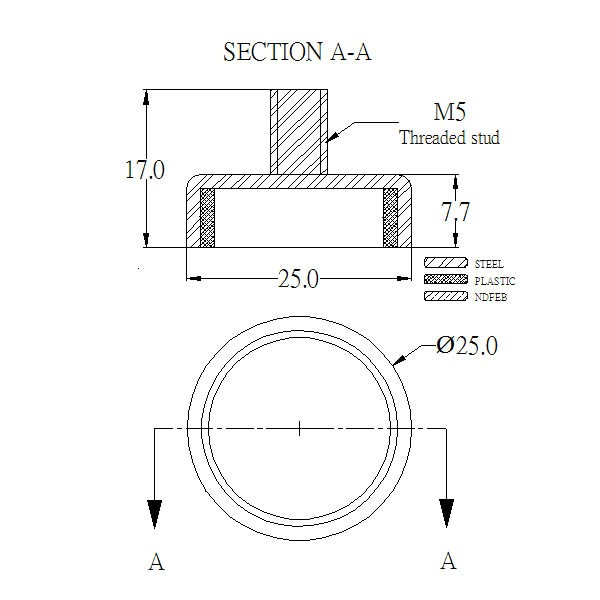

Dimensions & Specs
Item ID CUP-C25
Material NdFeB
Pot diameter (D) 25 mm
Total height (H2) 17 mm
Pot height (H1) 7.7 mm
Thread M M5 Male threaded stud
Coating Nickel-plated (Ni)
Steel Q235 (China)
Pull Force approx. 22kg ( approx. 215.6 N)
Max. working temperature 80°C
Net Weight 26 g
Item ID CUP-C25
Material NdFeB
Pot diameter (D) 0.984 "
Total height (H2) 0.669 "
Pot height (H1) 0.303 "
Thread M M5 Male threaded stud
Coating Nickel-plated (Ni)
Steel Q235 (China)
Pull Force approx. 48.501 lbs ( approx. 215.6 N)
Max. working temperature 80°C
Net Weight 0.917 oz
Product Details...

Item Description

This round base neodymium magnet has approx. 22 kg (approx. 48.501 lbs) holding power. The threaded stud is M5. is when the cup directly contacts with the steel. The outer diameter of the magnet is 25 mm (0.984 "). The total thickness of the assembly is 17 mm (0.669 ").

Technical Documentation

  • If you can’t find what you want,just send us an inquiry and we will be happy to make it for you!
