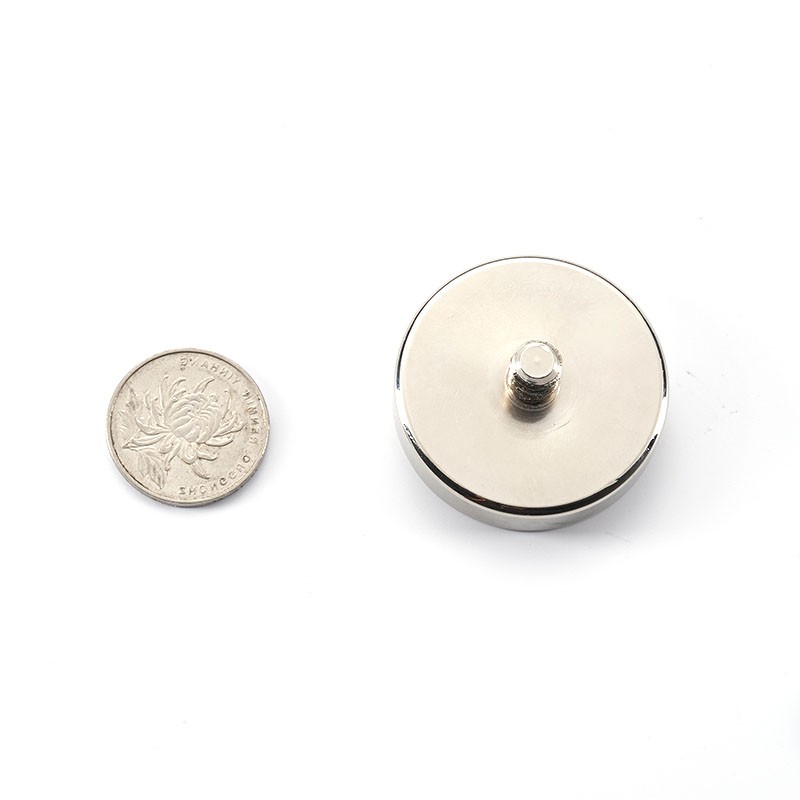

Cup magnet Ø 42 x 18.7 mm, with M6 Male threaded stud - Holds 68 kgs

Item #: CUP-C42

Item Code: CUP-C42

LOADING IMAGES

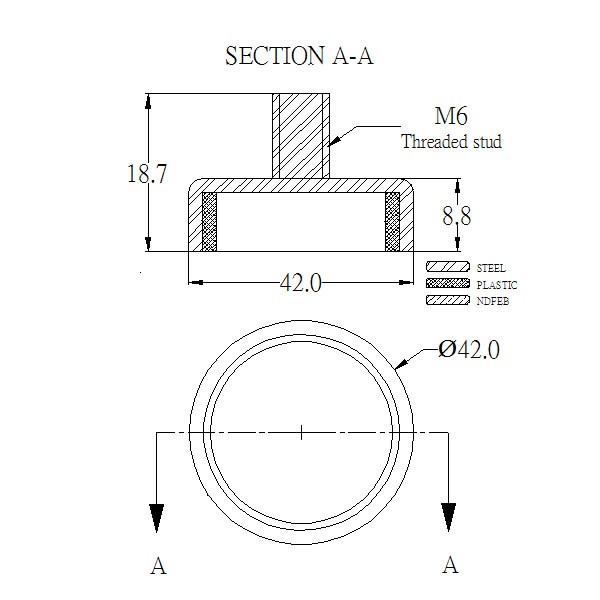

Dimensions & Specs
Item ID CUP-C42
Material NdFeB
Pot diameter (D) 42 mm
Total height (H2) 18.7 mm
Pot height (H1) 8.8 mm
Thread M M6 Male threaded stud
Coating Nickel-plated (Ni)
Steel Q235 (China)
Pull Force approx. 68kg ( approx. 666.4 N)
Max. working temperature 80°C
Net Weight 83 g
Item ID CUP-C42
Material NdFeB
Pot diameter (D) 1.654 "
Total height (H2) 0.736 "
Pot height (H1) 0.346 "
Thread M M6 Male threaded stud
Coating Nickel-plated (Ni)
Steel Q235 (China)
Pull Force approx. 149.913 lbs ( approx. 666.4 N)
Max. working temperature 80°C
Net Weight 2.928 oz
Product Details...

Item Description

This round base neodymium magnet has approx. 68 kg (approx. 149.913 lbs) holding power. The threaded stud is M6. is when the cup directly contacts with the steel. The outer diameter of the magnet is 42 mm (1.654 "). The total thickness of the assembly is 18.7 mm (0.736 ").

Technical Documentation

  • If you can’t find what you want,just send us an inquiry and we will be happy to make it for you!
