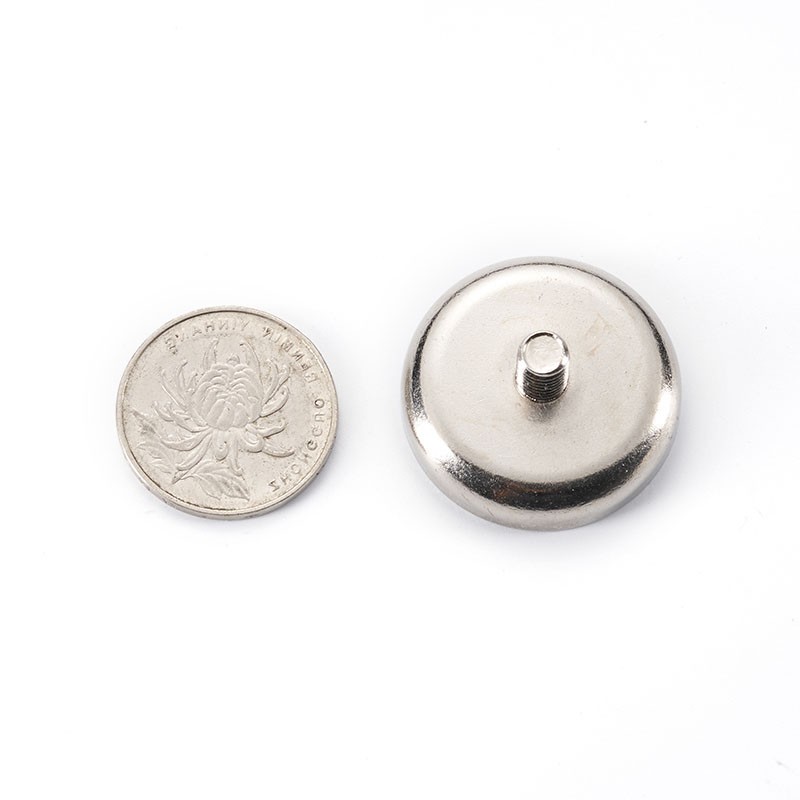

Cup magnet Ø 32 x 18 mm, with M6 Male threaded stud - Holds 34 kgs

Item #: CUP-C32

Item Code: CUP-C32

LOADING IMAGES
Dimensions & Specs
Item ID CUP-C32
Material NdFeB

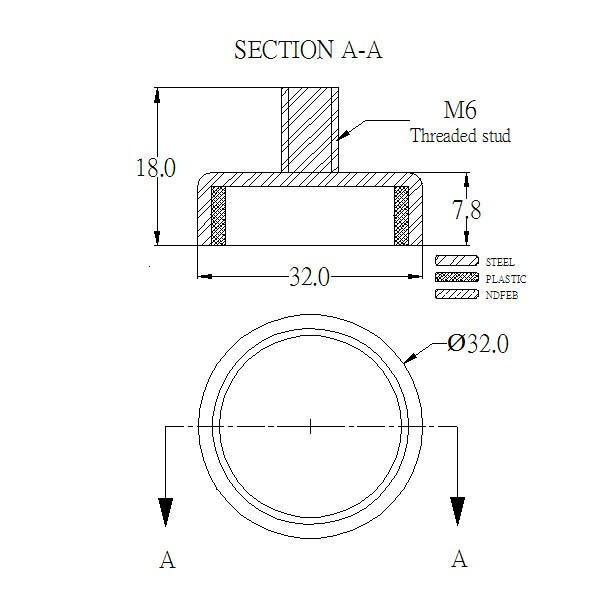

Pot diameter (D) 32 mm
Total height (H2) 18 mm
Pot height (H1) 7.8 mm
Thread M M6 Male threaded stud
Coating Nickel-plated (Ni)
Steel Q235 (China)
Pull Force approx. 34kg ( approx. 333.2 N)
Max. working temperature 80°C
Net Weight 43 g
Item ID CUP-C32
Material NdFeB
Pot diameter (D) 1.26 "
Total height (H2) 0.709 "
Pot height (H1) 0.307 "
Thread M M6 Male threaded stud
Coating Nickel-plated (Ni)
Steel Q235 (China)
Pull Force approx. 74.956 lbs ( approx. 333.2 N)
Max. working temperature 80°C
Net Weight 1.517 oz
Product Details...

Item Description

This round base neodymium magnet has approx. 34 kg (approx. 74.956 lbs) holding power. The threaded stud is M6. is when the cup directly contacts with the steel. The outer diameter of the magnet is 32 mm (1.26 "). The total thickness of the assembly is 18 mm (0.709 ").

Technical Documentation

  • If you can’t find what you want,just send us an inquiry and we will be happy to make it for you!
