The neodymium pot magnets have a high clamping force. They support a maximum working temperature of 80ºC and on request we can supply parts for maximum working temperatures of 150ºC.

Pot magnet Ø48x10.8 mm, M8 internal thread - Holds 63 kgs

Item Code: CUP-G48
Description

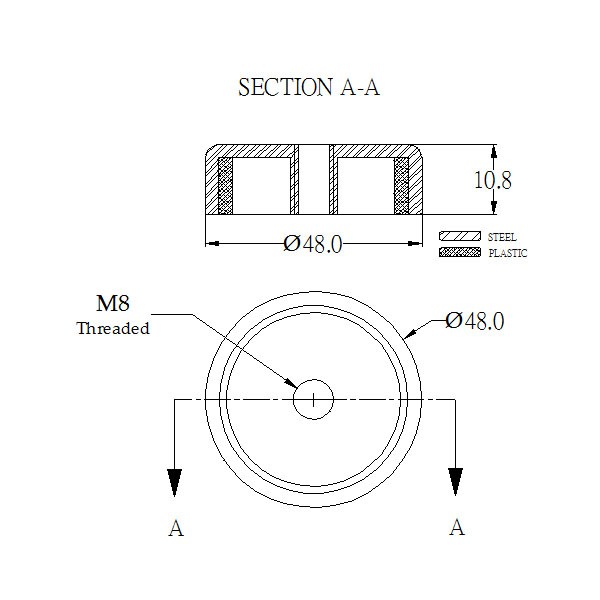

Pot magnet with internal thread, ø = 48 mm, with internal thread (M8), magnet made of neodymium, pot made of steel, nickel-plated, strength approx. 63 kgs.

Item code
CUP-G48

further product details

Ready for dispatch
on stock

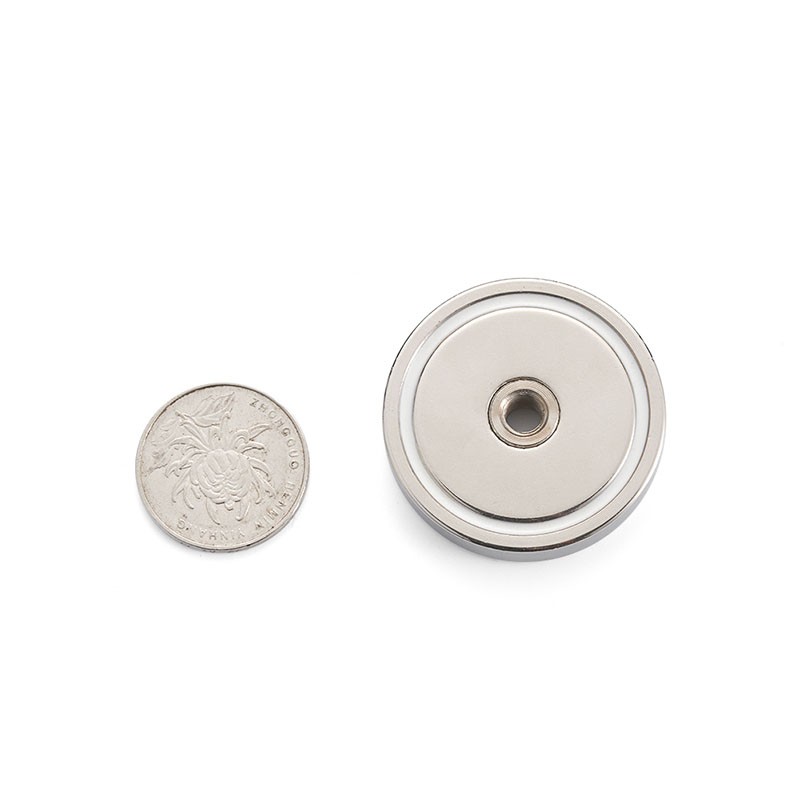

These Neodymium cup magnets (diameter 48 mm × height 10.8 mm) feature an M8 internal thread that allow them to be screwed together with objects that have a compatible external thread. An added advantage of pot magnets is that they are resistant to chipping or cracking following constant impact with a steel surface. It has a pull force of 63 kg (approx. 138.89 lbs).

Downloads

  • None
Item Code D Total height (H) Thread Power
kgs
CUP-G12 12 5 M3 3
CUP-G16 16 5.2 M3 4
CUP-G20 20 7.2 M4 6
CUP-G25 25 7.7 M5 14
CUP-G32 32 7.8 M5 23
CUP-G36 36 7.6 M6 29
CUP-G42 42 8.8 M6 32
CUP-G48 48 10.8 M8 63
CUP-G60 60 15 M8 95
CUP-G75 75 17.8 M10 155
Item Code D Total height (H) Thread Power
kgs
