Quick Info...

The neodymium pot magnets have a high clamping force. They support a maximum working temperature of 80ºC and on request we can supply parts for maximum working temperatures of 150ºC.

Pot magnet Ø32x7.8 mm, M5 internal thread - Holds 23 kgs

Item Code: CUP-G32
Description

Pot magnet with internal thread, ø = 32 mm, with internal thread (M5), magnet made of neodymium, pot made of steel, nickel-plated, strength approx. 23 kgs.

Item code
CUP-G32

further product details

Ready for dispatch
on stock

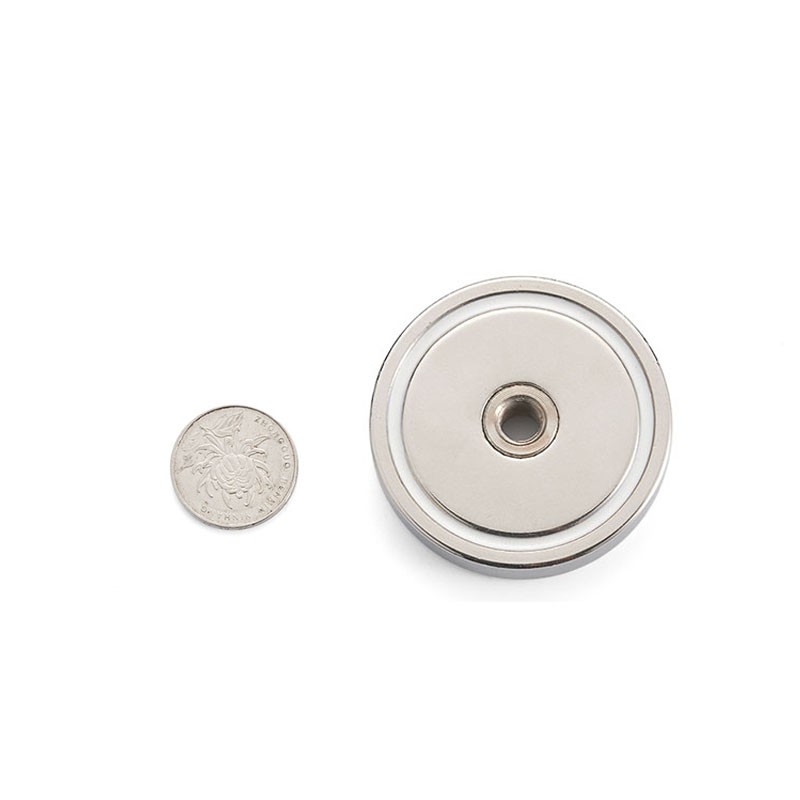

32 mm (1.26 ") diameter x 7.8mm ( 0.307 " ) with an M5 internal thread cap magnet / pot magnet. It has a pull force of 23 kg (approx. 50.706 lbs).

In applications in which a strong magnetic hold is required, but the magnet also needs to be easily removed, an eyebolt or screw that’s been threaded into the magnet can simply be tightened to lift the magnet off of the surface. Once the magnet has been slightly separated from the surface it will then be much easier to pull off. This is perfect for applications where the magnet will be used in a tight space and may be difficult to remove otherwise.

Downloads

  • None
Item Code D Total height (H) Thread Power
kgs
CUP-G12 12 5 M3 3
CUP-G16 16 5.2 M3 4
CUP-G20 20 7.2 M4 6
CUP-G25 25 7.7 M5 14
CUP-G32 32 7.8 M5 23
CUP-G36 36 7.6 M6 29
CUP-G42 42 8.8 M6 32
CUP-G48 48 10.8 M8 63
CUP-G60 60 15 M8 95
CUP-G75 75 17.8 M10 155
Item Code D Total height (H) Thread Power
kgs
