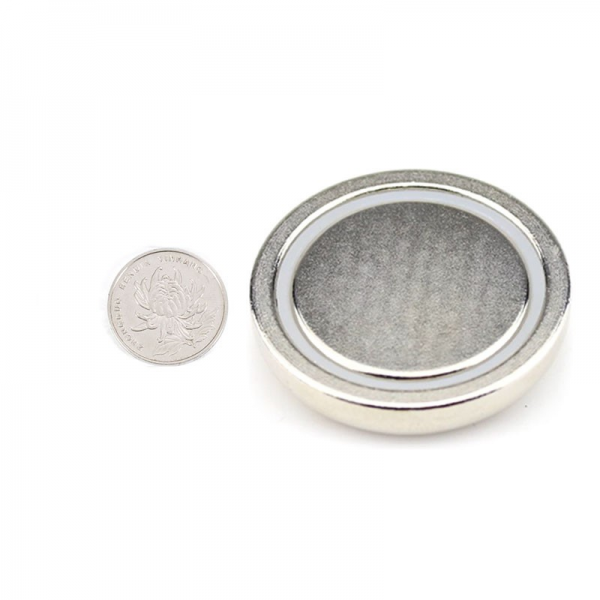

Flat cup magnet Ø 60 x 15 mm, without screw hole - Holds 113 kgs

Item #: CUP-H60

Item Code: CUP-H60

LOADING IMAGES
Dimensions & Specs
Item ID CUP-H60
Material NdFeB

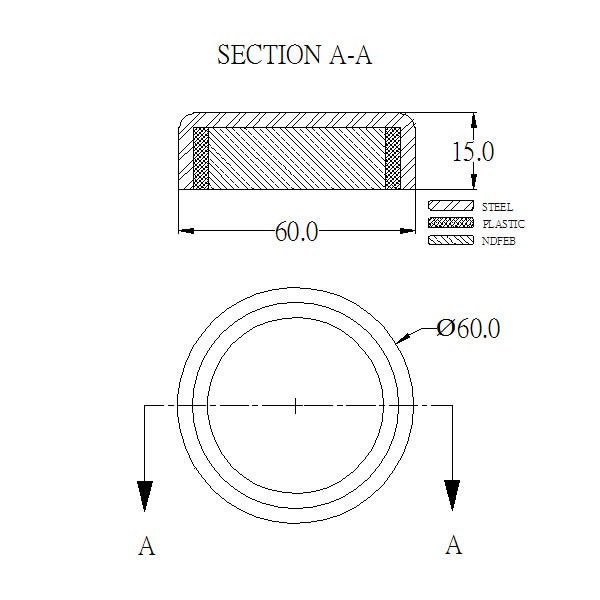

Pot diameter (D) 60 mm
Pot total height (H) 15 mm
Coating Nickel-plated (Ni)
Steel Q235 (China)
Pull Force approx. 113kg ( approx. 1107.4 N)
Max. working temperature 80°C
Net Weight 263 g
Item ID CUP-H60
Material NdFeB
Pot diameter (D) 2.362 "
Pot total height (H) 0.591 "
Coating Nickel-plated (Ni)
Steel Q235 (China)
Pull Force approx. 249.12 lbs ( approx. 1107.4 N)
Max. working temperature 80°C
Net Weight 9.277 oz
Product Details...

Item Description

The holding power of this magnetic assembly is about 113 kg (approx. 249.12 lbs) with a direct contact with the steel. The outer diameter of the magnet is 60mm (2.362 " ). The thickness of the cup magnet is 15mm (0.591 " ).

The magnetic round base is also known as magnetic cup holders or cup assembly.

Technical Documentation

  • If you can’t find what you want,just send us an inquiry and we will be happy to make it for you!
