Flat pot magnet Ø48x10.8 mm, without screw hole

Item Code: CUP-H48

LOADING IMAGES
Description

Item code
CUP-H48

further product details

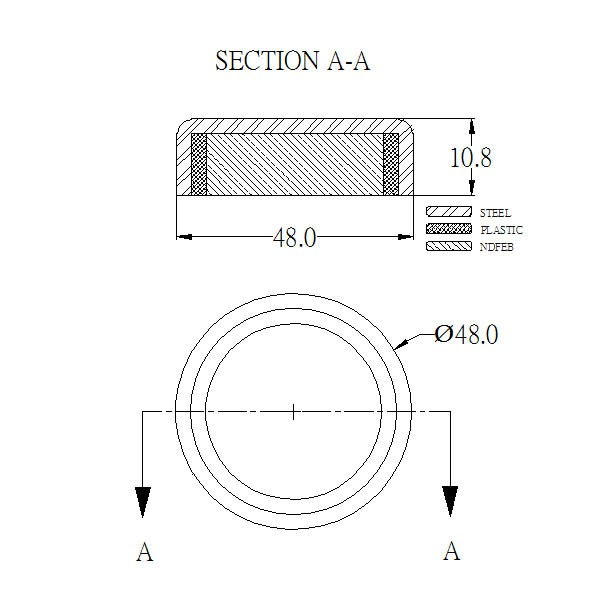

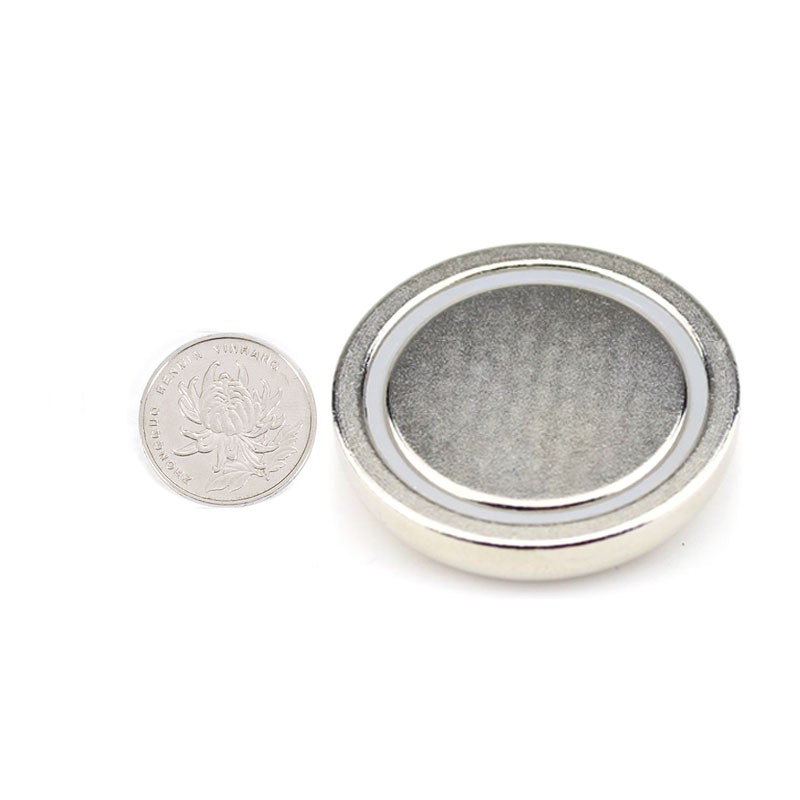

These neodymium cup magnets (diameter 48 mm × height 10.8 mm) are glued into indentations when it's impossible to screw them on. They have a higher adhesive force (It has a pull force of 81 kg (approx. 178.573 lbs) than same-size countersunk pot magnets because the contact surface is larger.

Attention: The magnets themselves are not self-adhesive; a suitable adhesive is linked under accessories.

Downloads

  • None
Item Code D Total height (H) Power
kgs
CUP-H10 10 5 2.2
CUP-H12 12 5 3.2
CUP-H16 16 5.2 5.5
CUP-H20 20 7.2 9
CUP-H25 25 7.7 22
CUP-H32 32 7.8 34
CUP-H36 36 7.6 41
CUP-H42 42 8.8 68
CUP-H48 48 10.8 81
CUP-H60 60 15 113
CUP-H75 75 17.8 164
Item Code D Total height (H) Power
kgs
