Quick Info...

The neodymium pot magnets have a high clamping force. They support a maximum working temperature of 80ºC and on request we can supply parts for maximum working temperatures of 150ºC.

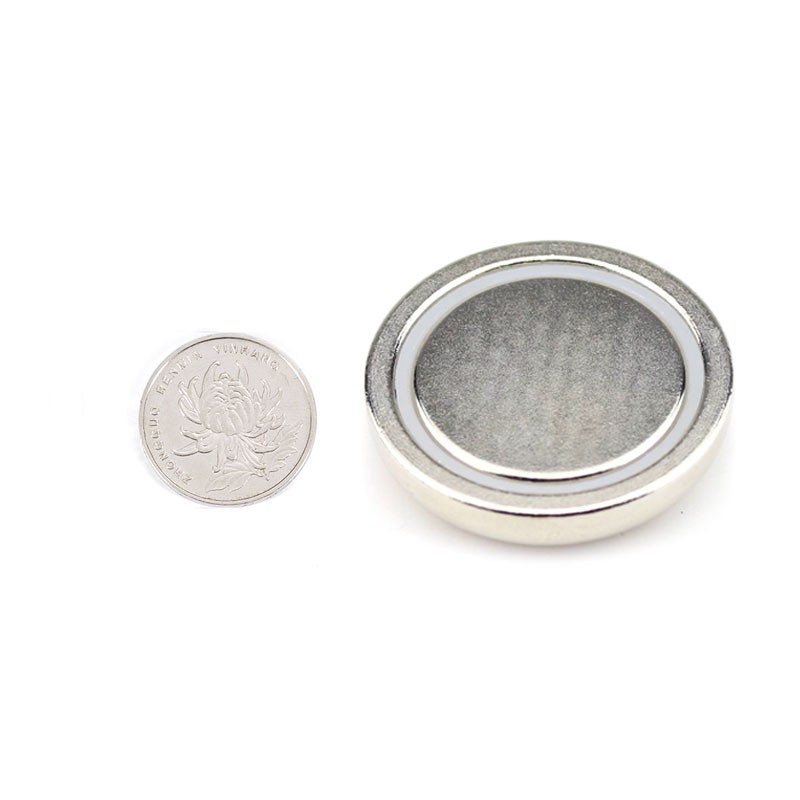

Flat pot magnet Ø42x8.8 mm, without screw hole - Holds 68 kgs

Item Code: CUP-H42
Description

Item code
CUP-H42

further product details

Ready for dispatch
on stock
Item Code D Total height (H) N.W. Power
kgs
CUP-H10 10 5 3.5 2.2
CUP-H12 12 5 6 3.2
CUP-H16 16 5.2 9 5.5
CUP-H20 20 7.2 17 9
CUP-H25 25 7.7 28 22
CUP-H32 32 7.8 45 34
CUP-H36 36 7.6 55 41
CUP-H42 42 8.8 84 68
CUP-H48 48 10.8 130 81
CUP-H60 60 15 263 113
CUP-H75 75 17.8 515 164
Item Code D Total height (H) N.W. Power
kgs

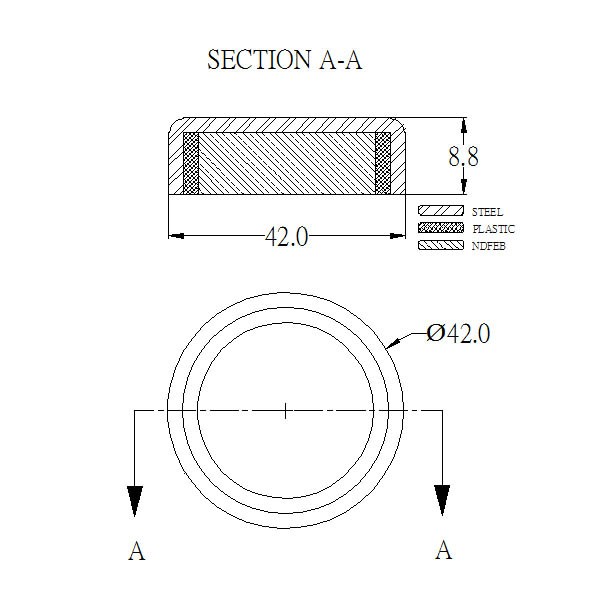

The holding power of this magnetic assembly is about 68 kg (approx. 149.913 lbs) with a direct contact with the steel. The outer diameter of the magnet is 42mm (1.654 " ). The thickness of the cup magnet is 8.8mm (0.346 " ).

The magnetic round base is also known as magnetic cup holders or cup assembly.

Please send us an inquiry for order to [email protected]
