Pot magnet Ø75x35 mm, M10 Female threaded stud

Item Code: CUP-D75

LOADING IMAGES
Description

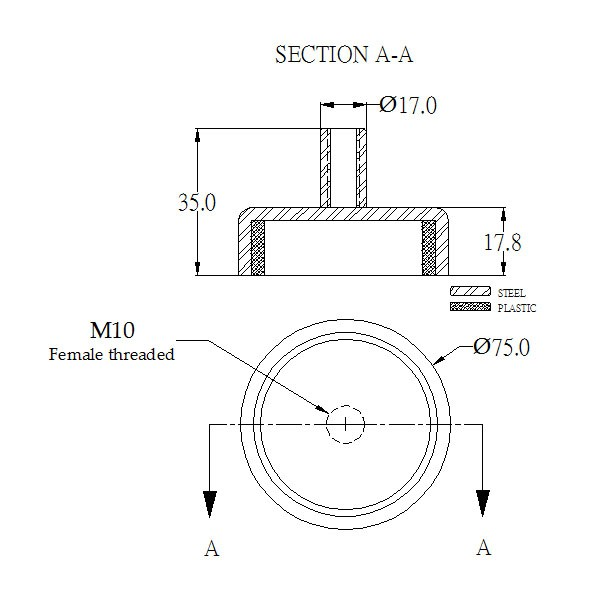

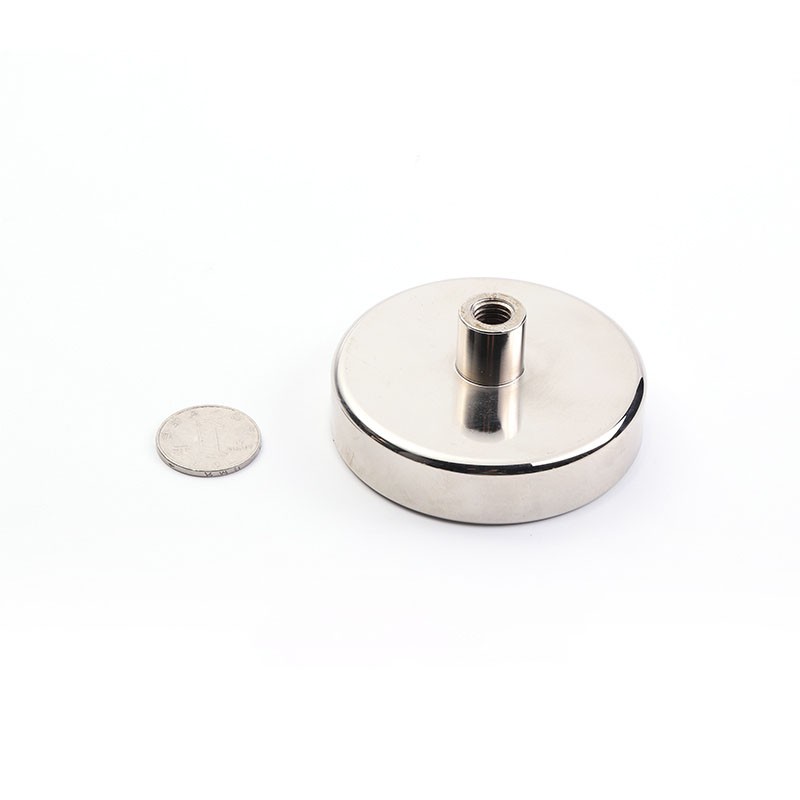

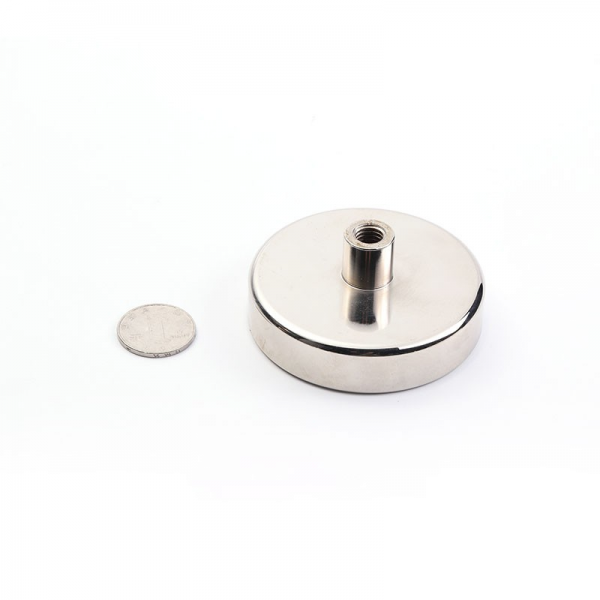

Pot magnet with screw socket, ø = 75 mm, height 35 mm, with screw top (M10), magnet made of neodymium, pot made of steel, nickel-plated, strength approx. 164 kgs.

Item code
CUP-D75

further product details

The female thread stud of neodymium cup magnet is made of strong permanent magnet, it’s the most powerful magnet mounted into Nickel coating steel cup, the cup increase approx 5 times power of magnet and resistant magnet to chipping or cracking. This disc base neodymium magnet has approx. 164 kg (approx. 361.554 lbs) holding power. The threaded Female Stud is for M10 screw.

The round base magnets are also known as magnetic cup holders or magnetic cup assembly.

Downloads

  • None
Item Code Dia x Height Thread Power
kgs
CUP-D10 10 x 5 mm M3 x 7 2.2
CUP-D12 12 x 5 mm M3 x 7 3.2
CUP-D16 16 x 5.2 mm M4 x 8.3 5.5
CUP-D20 20 x 7.2 mm M4 x 7.8 9
CUP-D25 25 x 7.7 mm M5 x 9.3 22
CUP-D32 32 x 7.8 mm M6 x 10.2 34
CUP-D36 36 x 7.6 mm M6 x 10.9 41
CUP-D42 42 x 8.8 mm M6 x 10 68
CUP-D48 48 x 10.8 mm M8 x 13.2 81
CUP-D60 60 x 15 mm M8 x 13 113
CUP-D75 75 x 17.8 mm M10 x 17.2 164
Item Code Dia x Height Thread Power
kgs
