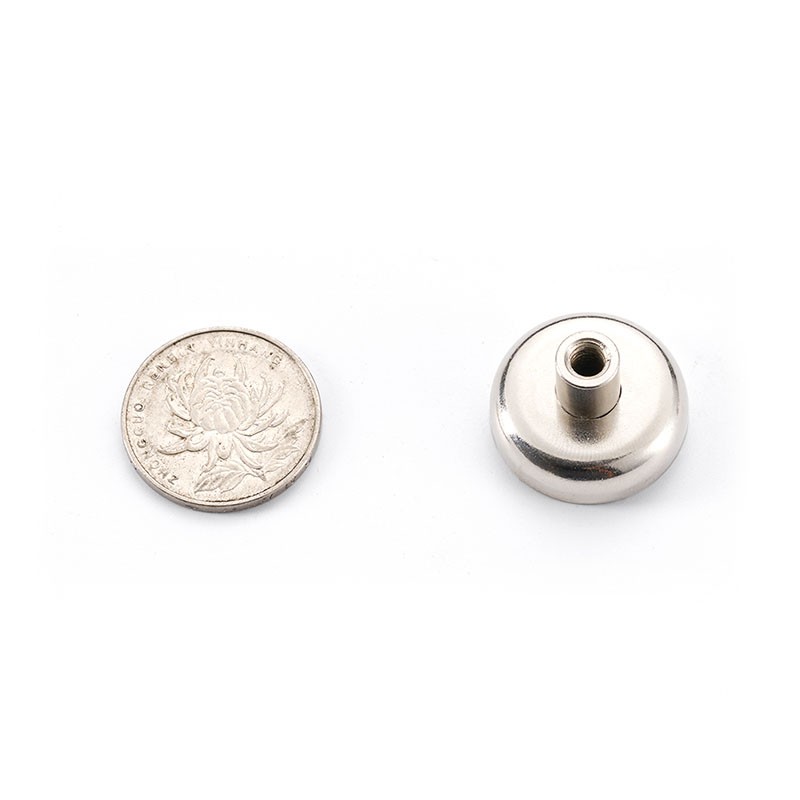

Cup magnet Ø 25 x 17 mm, with M5 Female threaded stud - Holds 22 kgs

Item #: CUP-D25

Item Code: CUP-D25
Description

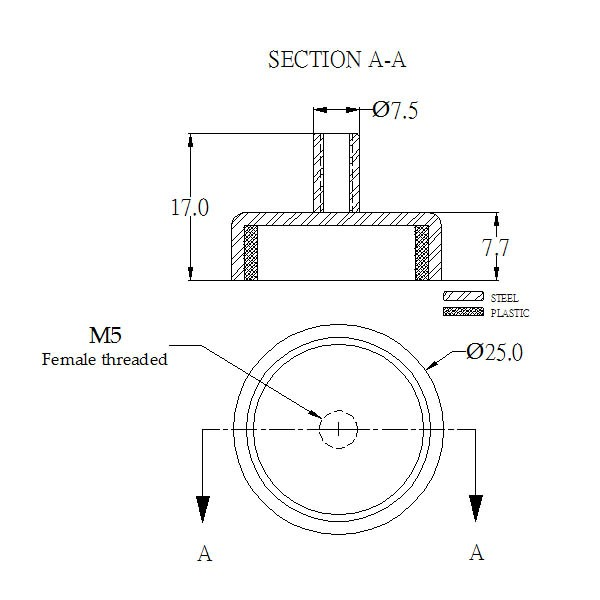

Pot magnet with screw socket, ø = 25 mm, height 17 mm, with screw top (M5), magnet made of neodymium, pot made of steel, nickel-plated, strength approx. 22 kgs.

Item code
CUP-D25

further product details

Minimum order quantity 100 Pieces

Ready for dispatch
on stock

The female thread stud of neodymium cup magnet is made of strong permanent magnet, it’s the most powerful magnet mounted into Nickel coating steel cup, the cup increase approx 5 times power of magnet and resistant magnet to chipping or cracking. This disc base neodymium magnet has approx. 22 kg (approx. 48.501 lbs) holding power. The threaded Female Stud is for M5 screw.

The round base magnets are also known as magnetic cup holders or magnetic cup assembly.

Please send us an inquiry for order to [email protected]
