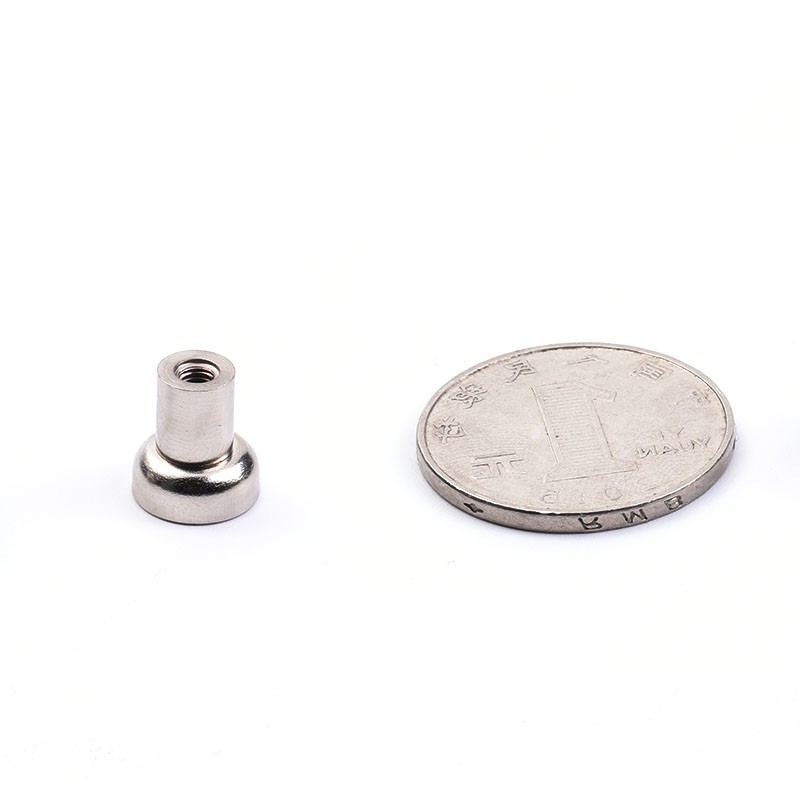

Cup magnet Ø 10 x 12 mm, with M3 Female threaded stud - Holds 2.2 kgs

Item #: CUP-D10

Item Code: CUP-D10

LOADING IMAGES

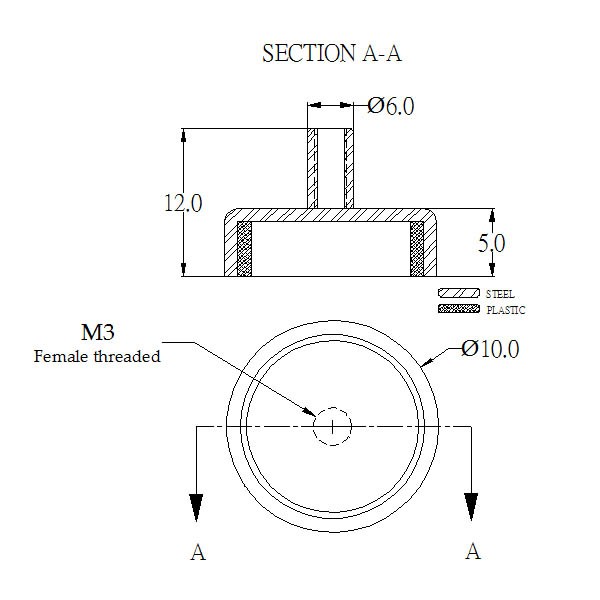

Dimensions & Specs
Item ID CUP-D10
Material NdFeB
Pot diameter (D) 10 mm
Total height (H2) 12 mm
Neck diameter (d) 6 mm
Pot height (H1) 5 mm
Thread M M3 Female threaded stud
Coating Nickel-plated (Ni)
Steel Q235 (China)
Pull Force approx. 2.2kg ( approx. 21.56 N)
Max. working temperature 80°C
Net Weight 4 g
Item ID CUP-D10
Material NdFeB
Pot diameter (D) 0.394 "
Total height (H2) 0.472 "
Neck diameter (d) 0.236 "
Pot height (H1) 0.197 "
Thread M M3 Female threaded stud
Coating Nickel-plated (Ni)
Steel Q235 (China)
Pull Force approx. 4.85 lbs ( approx. 21.56 N)
Max. working temperature 80°C
Net Weight 0.141 oz
Product Details...

Item Description

The female thread stud of neodymium cup magnet is made of strong permanent magnet, it’s the most powerful magnet mounted into Nickel coating steel cup, the cup increase approx 5 times power of magnet and resistant magnet to chipping or cracking. This disc base neodymium magnet has approx. 2.2 kg (approx. 4.85 lbs) holding power. The threaded Female Stud is for M3 screw.

The round base magnets are also known as magnetic cup holders or magnetic cup assembly.

Technical Documentation

  • If you can’t find what you want,just send us an inquiry and we will be happy to make it for you!
