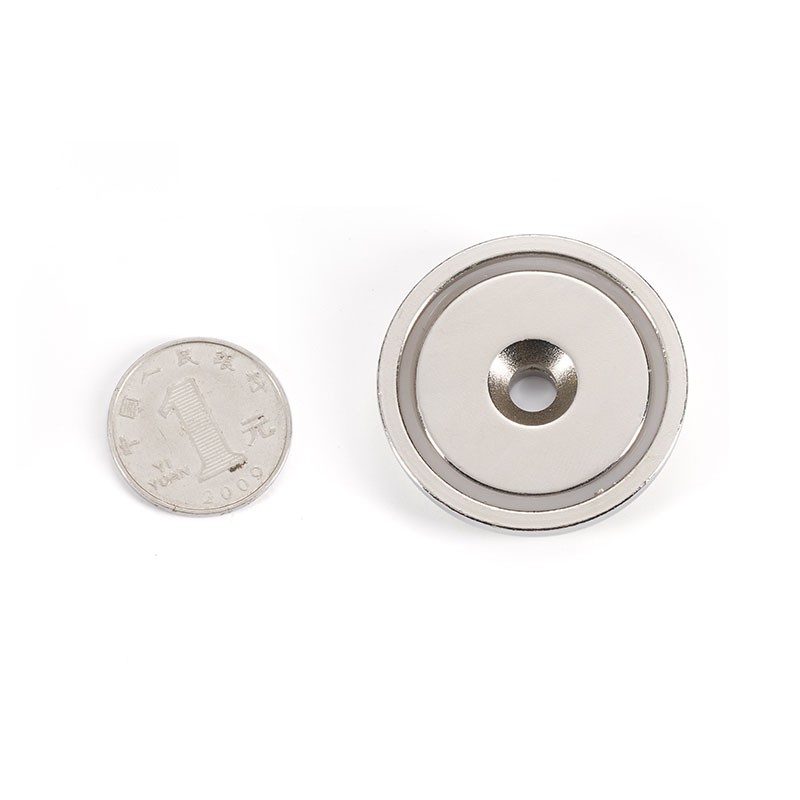

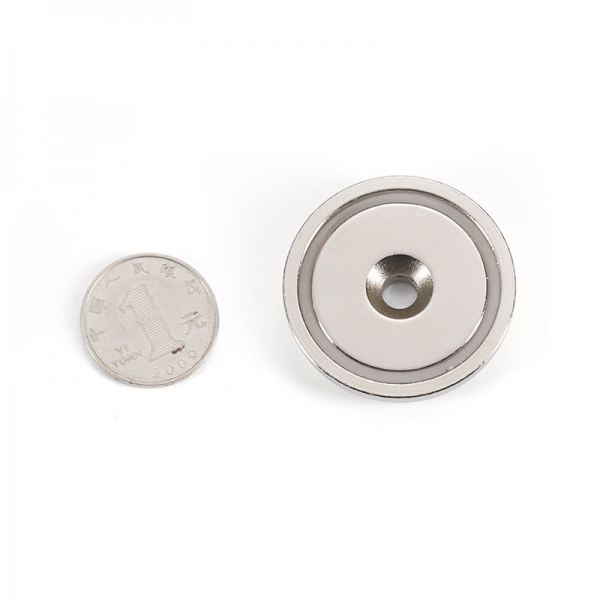

Neodymium cup magnet Ø 42 x 8.8 mm with countersunk hole - Holds 37 kgs

Inner hole for M6 countersunk-head screw | Item #: CUP-A42

Item Code: CUP-A42

LOADING IMAGES
Dimensions & Specs
Item ID CUP-A42
Material NdFeB

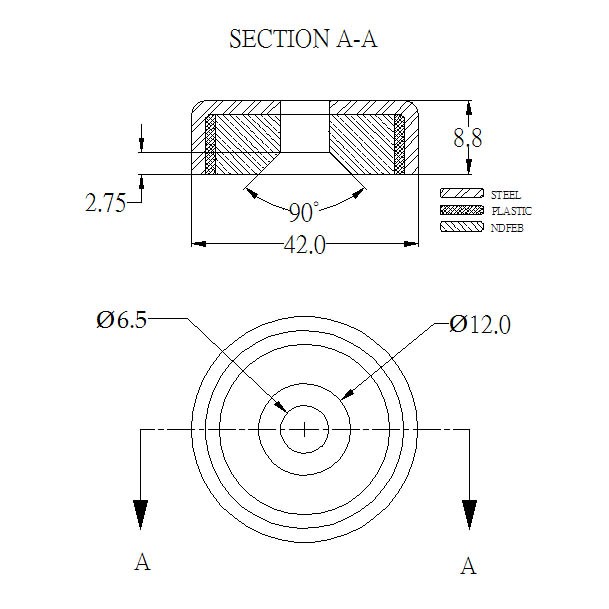

Pot diameter (D) 42 mm
Pot total height (H) 8.8 mm
Borehole (d1) 6.5 mm (Sized for M6 screw)
Countersinking (d2) 12 mm (Tapered countersunk hole)
Countersinking (t) 2.75 mm
Thread M M6 Screw
Coating Nickel-plated (Ni)
Steel Q235 (China)
Pull Force approx. 37kg ( approx. 362.6 N)
Max. working temperature 80°C
Net Weight 77 g
Item ID CUP-A42
Material NdFeB
Pot diameter (D) 1.654 "
Pot total height (H) 0.346 "
Borehole (d1) 0.256 " (Sized for M6 screw)
Countersinking (d2) 0.472 " (Tapered countersunk hole)
Countersinking (t) 0.108 "
Thread M M6 Screw
Coating Nickel-plated (Ni)
Steel Q235 (China)
Pull Force approx. 81.57 lbs ( approx. 362.6 N)
Max. working temperature 80°C
Net Weight 2.716 oz
Product Details...

Item Description

Powerful Neodymium round base cup magnet (42mm diameter × 8.8mm height) is made of a super strong neodymium magnet encased inside of a Nickel (Ni) plated steel cup and countersunk for a 6.5mm diameter countersunk screws.

This strong magnet is coated in a Nickel (Ni) coating that offers exceptional corrosion resistance when used in wet or humid environments. The neodymium magnet is bonded inside of the cup with adhesives. This design forms a magnetic circuit which triples the holding force to 37kg (approx. 81.57 lbs)!

Technical Documentation

  • If you can’t find what you want,just send us an inquiry and we will be happy to make it for you!
