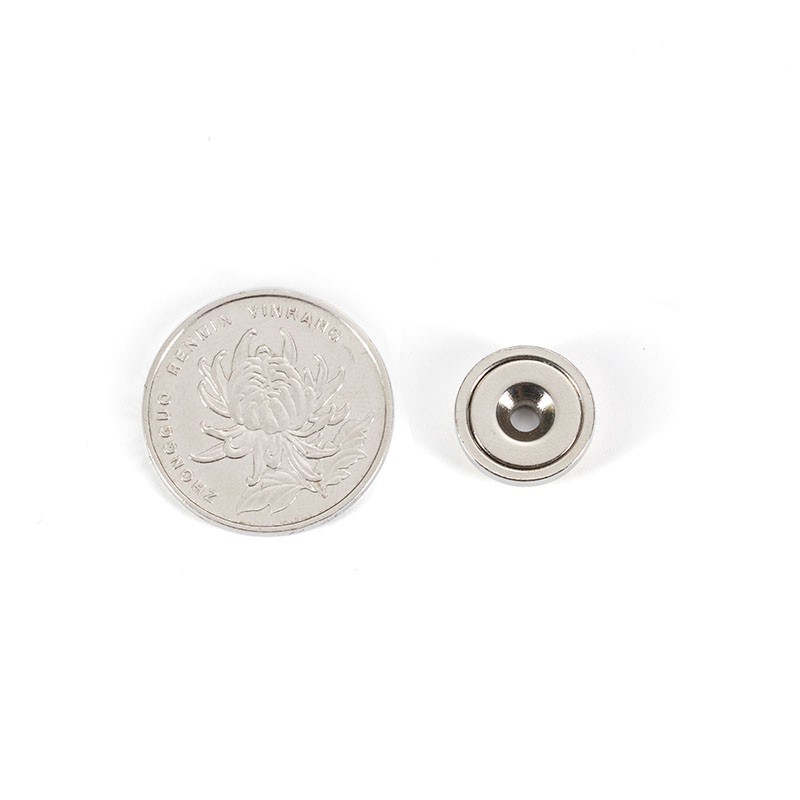

Pot magnet Ø10x5 mm with countersunk hole

Item Code: CUP-A10

LOADING IMAGES
Description

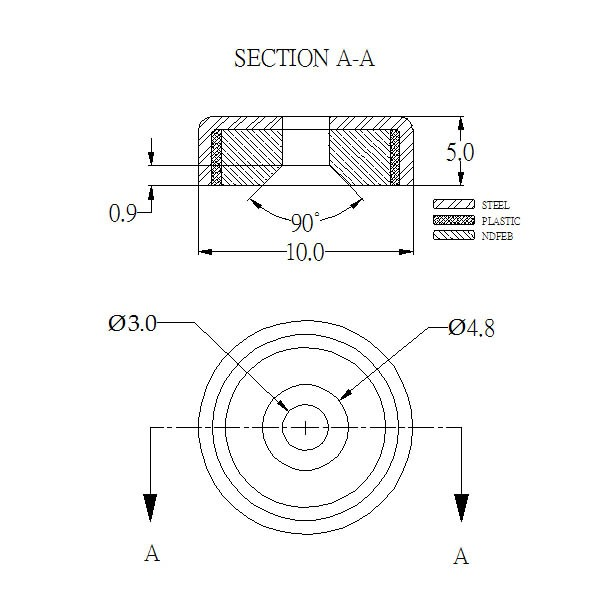

Pot magnet with countersunk borehole, ø = 10 mm, height 5 mm, borehole 3/4.8 mm, angle 90°, magnet made of neodymium, pot made of steel, strength approx. 1.2 kgs.

Item code
CUP-A10

further product details

Powerful Neodymium round base cup magnet (10mm diameter × 5mm height) is made of a super strong neodymium magnet encased inside of a Nickel (Ni) plated steel cup and countersunk for a 3mm diameter countersunk screws.

This strong magnet is coated in a Nickel (Ni) coating that offers exceptional corrosion resistance when used in wet or humid environments. The neodymium magnet is bonded inside of the cup with adhesives. This design forms a magnetic circuit which triples the holding force to 1.2kg (approx. 2.646 lbs)!

Downloads

  • None
Item Code D H Borehole (d1) Countersinking (d2) Power
kgs
CUP-A16 16 5.2 3.5 6.5 5
CUP-A20 20 7.2 4.5 8.6 6
CUP-A25 25 7.7 5.5 10.4 14
CUP-A32 32 7.8 5.5 10.4 25
CUP-A36 36 7.6 6.5 12 29
CUP-A42 42 8.8 6.5 12 37
CUP-A48 48 10.8 8.5 16 68
CUP-A60 60 15 8.5 16 112
CUP-A75 75 17.8 10.5 19 162
CUP-A10 10 5 3 4.8 1.2
CUP-A12 12 5 3 5.5 1.8
Item Code D H Borehole (d1) Countersinking (d2) Power
kgs
