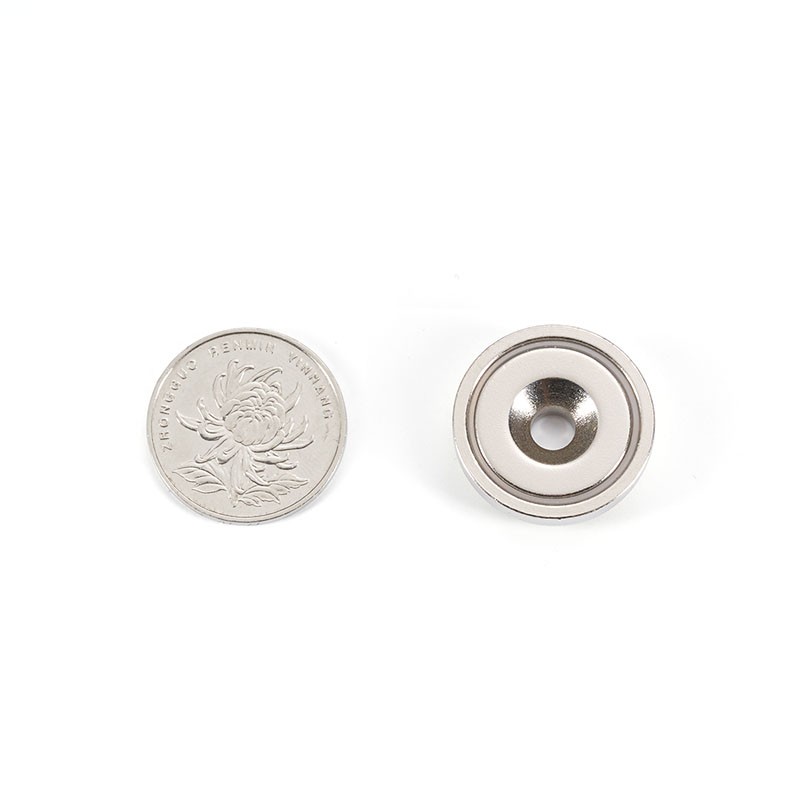

Neodymium cup magnet Ø 25 x 7.7 mm with countersunk hole - Holds 14 kgs

Inner hole for M5 countersunk-head screw | Item #: CUP-A25

Item Code: CUP-A25

LOADING IMAGES

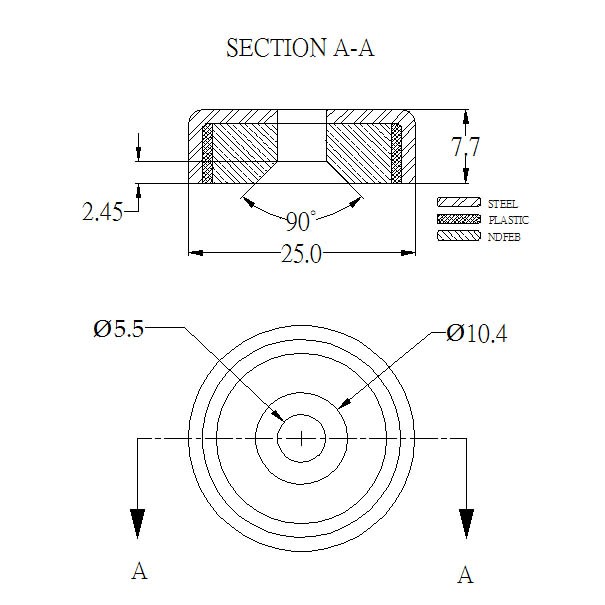

Dimensions & Specs
Item ID CUP-A25
Material NdFeB
Pot diameter (D) 25 mm
Pot total height (H) 7.7 mm
Borehole (d1) 5.5 mm (Sized for M5 screw)
Countersinking (d2) 10.4 mm (Tapered countersunk hole)
Countersinking (t) 2.45 mm
Thread M M5 Screw
Coating Nickel-plated (Ni)
Steel Q235 (China)
Pull Force approx. 14kg ( approx. 137.2 N)
Max. working temperature 80°C
Net Weight 24 g
Item ID CUP-A25
Material NdFeB
Pot diameter (D) 0.984 "
Pot total height (H) 0.303 "
Borehole (d1) 0.217 " (Sized for M5 screw)
Countersinking (d2) 0.409 " (Tapered countersunk hole)
Countersinking (t) 0.096 "
Thread M M5 Screw
Coating Nickel-plated (Ni)
Steel Q235 (China)
Pull Force approx. 30.864 lbs ( approx. 137.2 N)
Max. working temperature 80°C
Net Weight 0.847 oz
Product Details...

Item Description

This 25mm diameter × 7.7mm height cup neodymium magnet has 14kg (approx. 30.864 lbs) holding power.

The countersink feature allows the magnet to be mounted to any surface with a standard 90deg countersunk screw. Can be fixed in place with 5.5mm diameter countersunk screws. Maximum working temperature is 80 C(176 F).

Technical Documentation

  • If you can’t find what you want,just send us an inquiry and we will be happy to make it for you!
