Quick Info...

The neodymium pot magnets have a high clamping force. They support a maximum working temperature of 80ºC and on request we can supply parts for maximum working temperatures of 150ºC.

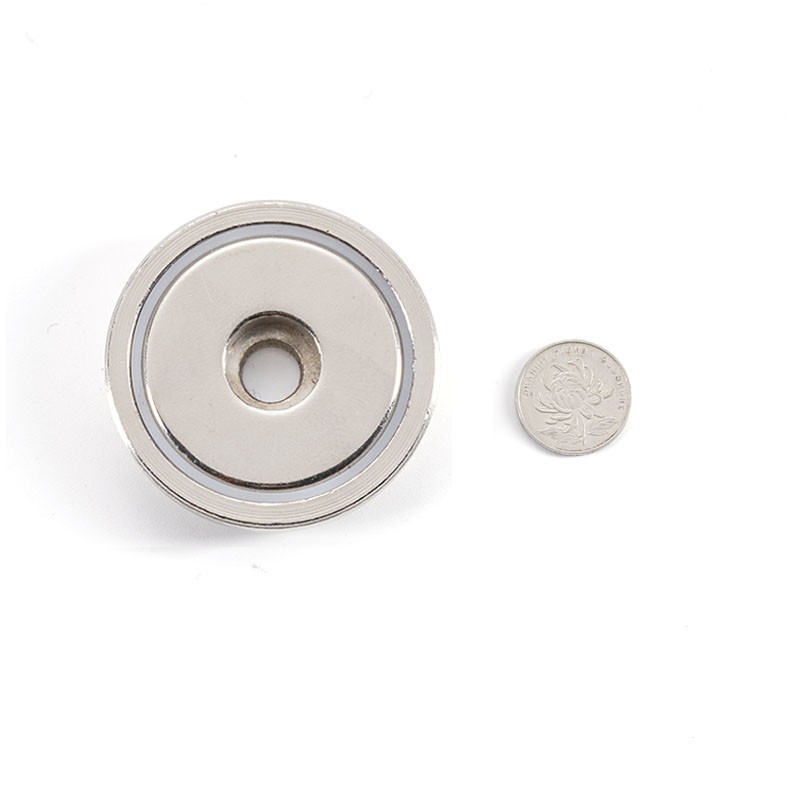

Pot magnet Ø75x17.8 mm with counterbore hole - Holds 155 kgs

Item Code: CUP-B75
Description

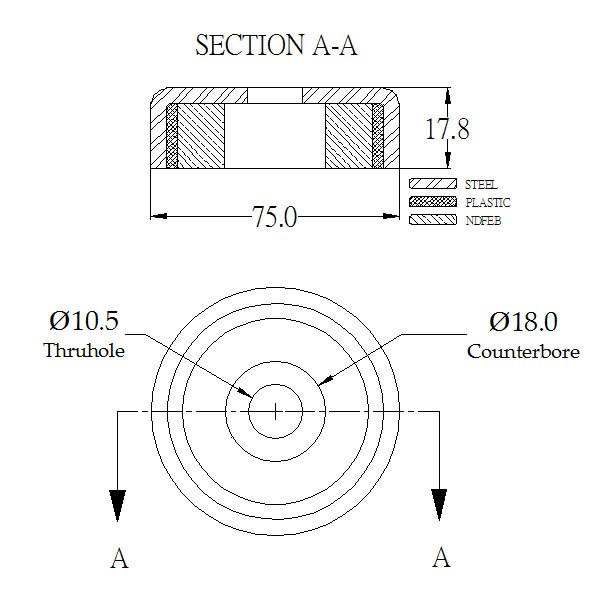

Pot magnet with counterbore borehole, ø = 75 mm, height 17.8 mm, borehole 10.5/18 mm, magnet made of neodymium, pot made of steel, strength approx. 155 kgs.

Item code
CUP-B75

further product details

Ready for dispatch
on stock
Item Code D H Borehole (d1) Borehole (d2) N.W. Power
kgs
CUP-B16 16 5.2 3.5 6.5 6.5 4
CUP-B20 20 7.2 4.5 8 13 6
CUP-B25 25 7.7 5.5 9 22 14
CUP-B32 32 7.8 5.5 9 38 23
CUP-B36 36 7.6 6.5 11 48 29
CUP-B42 42 8.8 6.5 11 75 32
CUP-B48 48 10.8 8.5 15 114 63
CUP-B60 60 15 8.5 15 235 95
CUP-B75 75 17.8 10.5 18 460 155
Item Code D H Borehole (d1) Borehole (d2) N.W. Power
kgs

The counter-bored hole pot magnet is available with countersinks and threaded studs. The neodymium ring magnet sunken into a steel shell and protect the magnet, the most important is the steel shell enhance several times power of the magnets. This ring base neodymium magnet has approx. 155 kg (approx. 341.713 lbs) holding power. The counterbored hole (10.5mm) is for M10 screw.

Please send us an inquiry for order to [email protected]

Downloads

  • None
