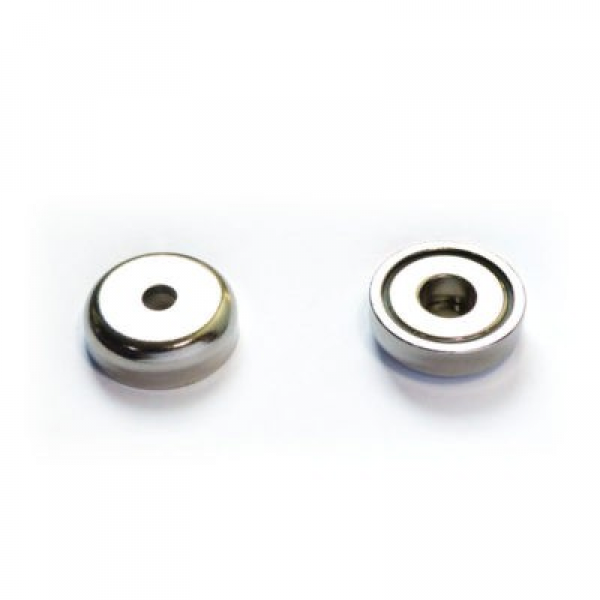

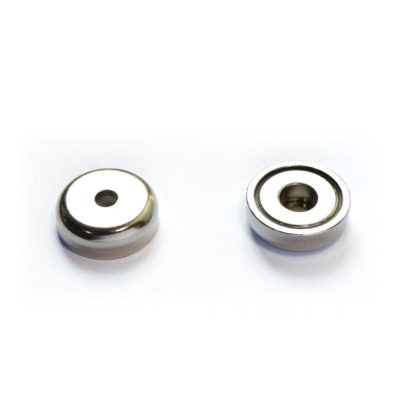

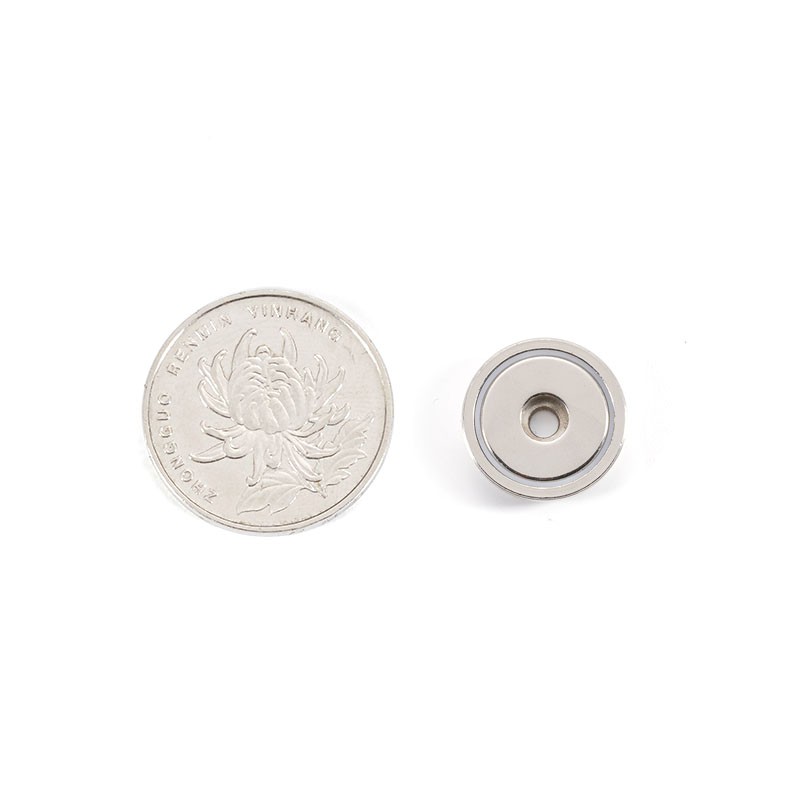

Neodymium cup magnet Ø 16 x 5.2 mm with counterbore hole - Holds 4 kgs

Item #: CUP-B16

Item Code: CUP-B16

LOADING IMAGES
Dimensions & Specs
Item ID CUP-B16
Material NdFeB

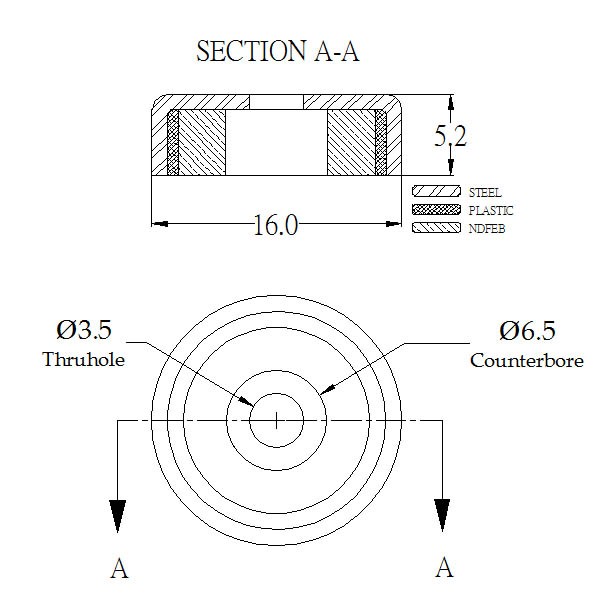

Pot diameter (D) 16 mm
Pot total height (H) 5.2 mm
Borehole (d1) 3.5 mm (Sized for M3 screw)
Borehole (d2) 6.5 mm (Straight counterbored hole)
Thread M M3 Screw
Coating Nickel-plated (Ni)
Steel Q235 (China)
Pull Force approx. 4kg ( approx. 39.2 N)
Max. working temperature 80°C
Net Weight 6.5 g
Item ID CUP-B16
Material NdFeB
Pot diameter (D) 0.63 "
Pot total height (H) 0.205 "
Borehole (d1) 0.138 " (Sized for M3 screw)
Borehole (d2) 0.256 " (Straight counterbored hole)
Thread M M3 Screw
Coating Nickel-plated (Ni)
Steel Q235 (China)
Pull Force approx. 8.818 lbs ( approx. 39.2 N)
Max. working temperature 80°C
Net Weight 0.229 oz
Product Details...

Item Description

The counter-bored hole pot magnet is available with countersinks and threaded studs. The neodymium ring magnet sunken into a steel shell and protect the magnet, the most important is the steel shell enhance several times power of the magnets. This ring base neodymium magnet has approx. 4 kg (approx. 8.818 lbs) holding power. The counterbored hole (3.5mm) is for M3 screw.

Technical Documentation

  • If you can’t find what you want,just send us an inquiry and we will be happy to make it for you!
