Quick Info...

The neodymium pot magnets have a high clamping force. They support a maximum working temperature of 80ºC and on request we can supply parts for maximum working temperatures of 150ºC.

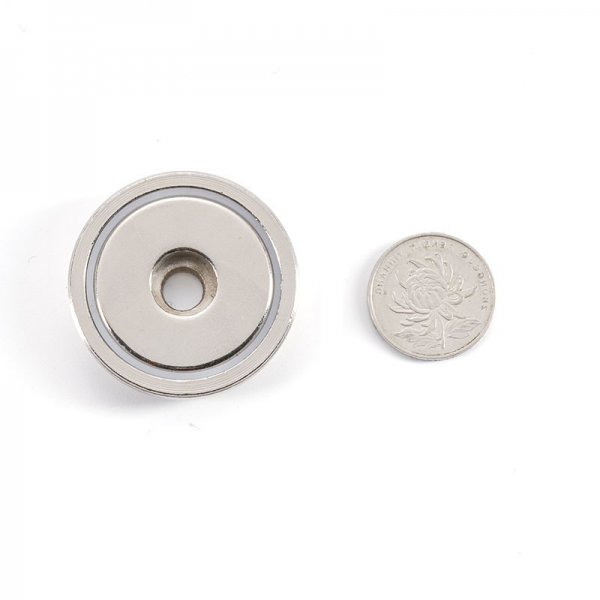

Pot magnet Ø42x8.8 mm with cylindrical borehole - Holds 32 kgs

Item Code: CUP-B42
Description

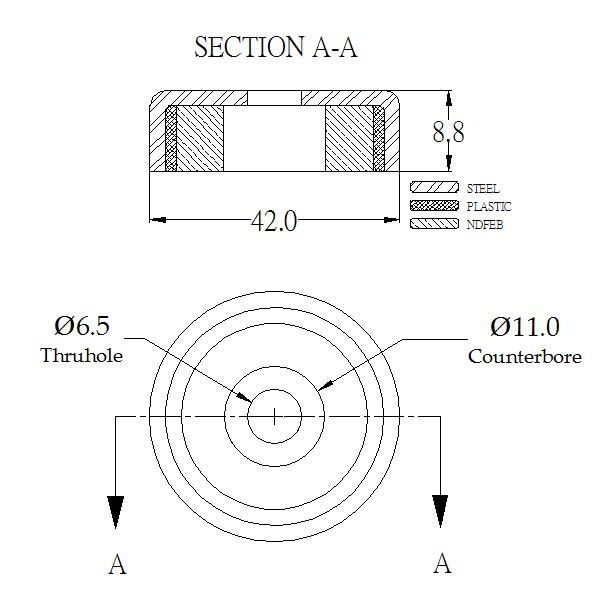

Pot magnet with counterbore borehole, ø = 42 mm, height 8.8 mm, borehole 6.5/11 mm, magnet made of neodymium, pot made of steel, strength approx. 32 kgs.

Item code
CUP-B42

further product details

Ready for dispatch
on stock
Item Code D H Borehole (d1) Borehole (d2) N.W. Power
kgs
CUP-B16 16 5.2 3.5 6.5 6.5 4
CUP-B20 20 7.2 4.5 8 13 6
CUP-B25 25 7.7 5.5 9 22 14
CUP-B32 32 7.8 5.5 9 38 23
CUP-B36 36 7.6 6.5 11 48 29
CUP-B42 42 8.8 6.5 11 75 32
CUP-B48 48 10.8 8.5 15 114 63
CUP-B60 60 15 8.5 15 235 95
CUP-B75 75 17.8 10.5 18 460 155
Item Code D H Borehole (d1) Borehole (d2) N.W. Power
kgs

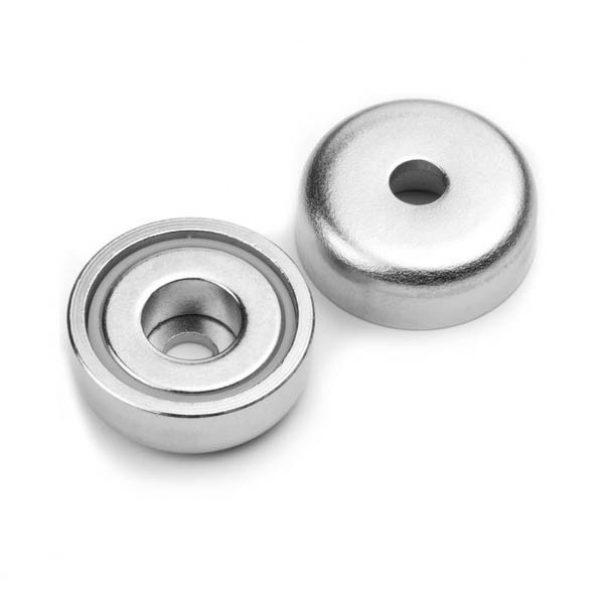

The counter-bored hole pot magnet is available with countersinks and threaded studs. The neodymium ring magnet sunken into a steel shell and protect the magnet, the most important is the steel shell enhance several times power of the magnets. This ring base neodymium magnet has approx. 32 kg (approx. 70.547 lbs) holding power. The counterbored hole (6.5mm) is for M6 screw.

Please send us an inquiry for order to [email protected]
