Quick Info...

The neodymium pot magnets have a high clamping force. They support a maximum working temperature of 80ºC and on request we can supply parts for maximum working temperatures of 150ºC.

Pot magnet Ø60mm with M8 hook - Holds 113 kgs

Item Code: CUP-E60
Description

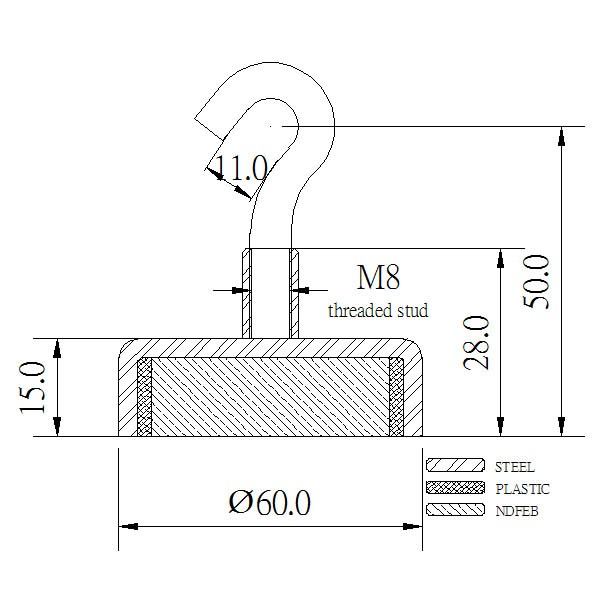

Pot magnet with hook, ø = 60 mm, magnet made of neodymium, pot made of steel, nickel-plated, strength approx. 113 kgs.

Item code
CUP-E60

further product details

Ready for dispatch
on stock
Item Code D Pot height (H1) Distance to the center of the hook (H2) N.W. Power
kgs
CUP-E10 10 5 27 6 2.2
CUP-E12 12 5 27 8 3.2
CUP-E16 16 5.2 30 12 5.5
CUP-E20 20 7.2 32 21 9
CUP-E25 25 7.7 32 33 22
CUP-E32 32 7.8 36 54 34
CUP-E36 36 7.6 36 64 41
CUP-E42 42 8.8 37 93 68
CUP-E48 48 10.8 45 150 81
CUP-E60 60 15 50 283 113
CUP-E75 75 17.8 62 555 164
Item Code D Pot height (H1) Distance to the center of the hook (H2) N.W. Power
kgs

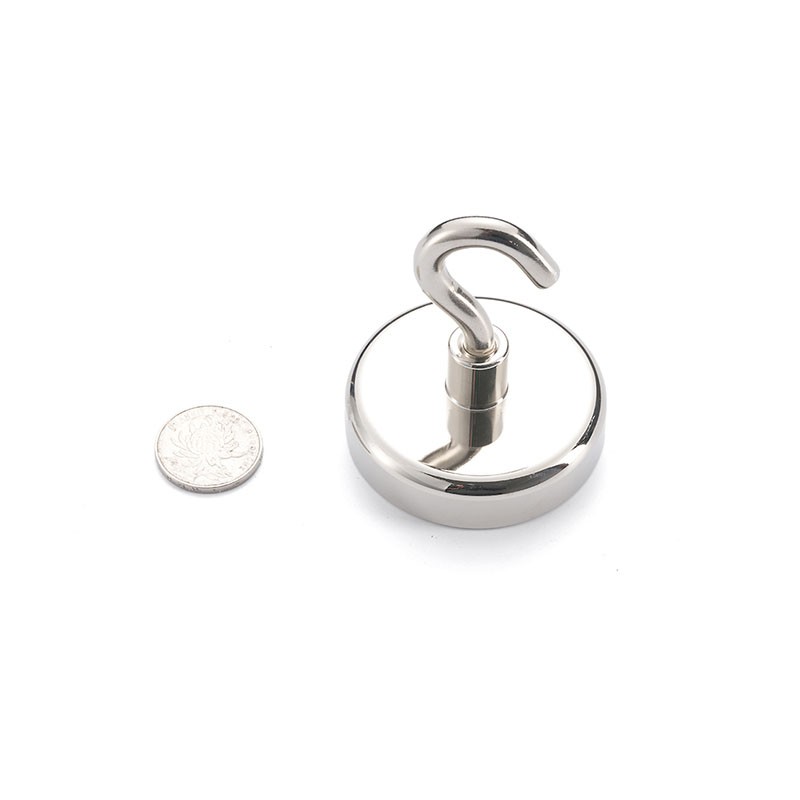

This handy and useful magnetic hook has a strong neodymium magnet embedded inside a Nickel coated steel cup to offer the maximum gripping power. A Nickel coated hook is attached to the magnetic cup through a M8 threaded hole. The steel cup offers protection for the magnet and concentrates the magnetic force on the magnet surface.

The Super Magnets Handi Hook 20 lb. Magnetic Pull Hook makes it easy to hang items from metal surfaces. The hook is designed to hold up to 113 kg (approx. 249.12 lbs).

Please send us an inquiry for order to [email protected]
