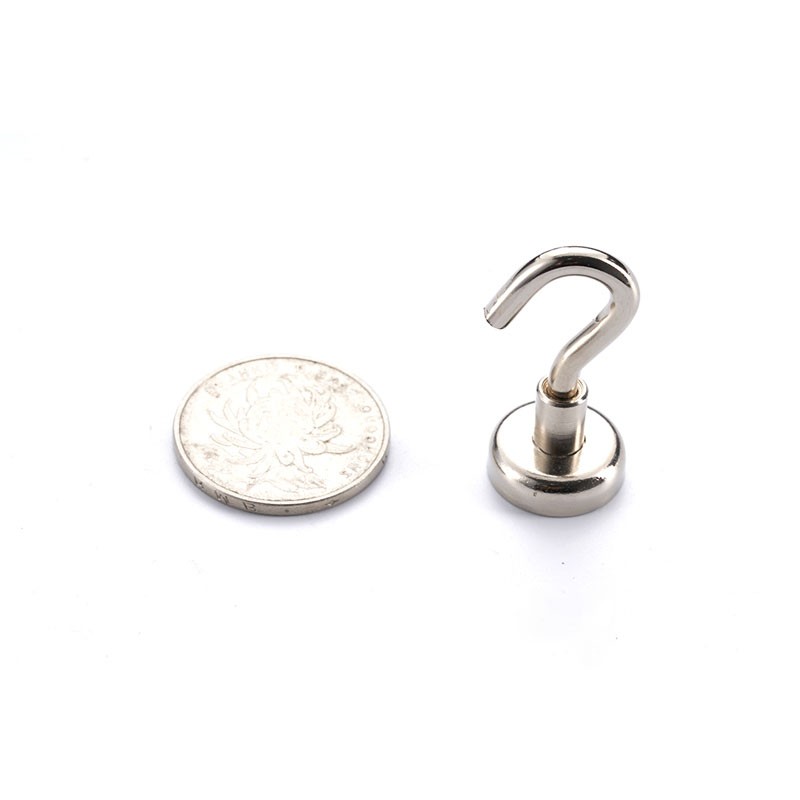

Magnetic hook Ø 16 mm - Holds 5.5 kgs

Item #: CUP-E16

Item Code: CUP-E16

LOADING IMAGES

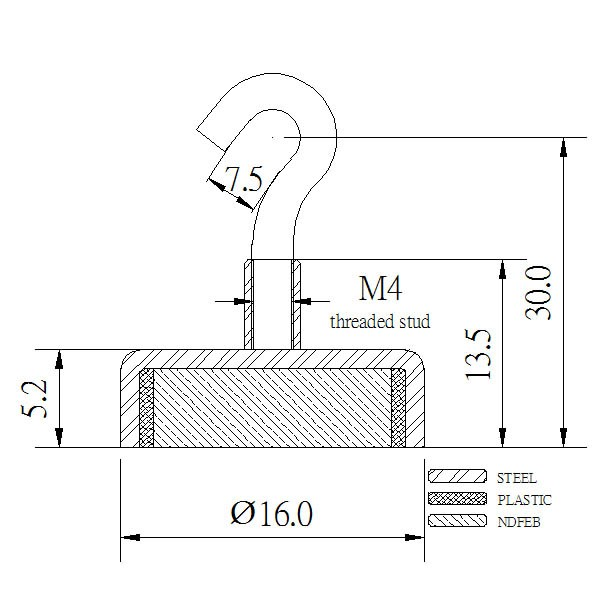

Dimensions & Specs
Item ID CUP-E16
Material NdFeB
Pot diameter (D) 16 mm
Distance to the center of the hook (H2) 30 mm
Hook opening width (a) 7.5 mm
Pot height (H1) 5.2 mm
Thread M M4 threaded open hook
Coating Nickel-plated (Ni)
Steel Q235 (China)
Pull Force approx. 5.5kg ( approx. 53.9 N)
Max. working temperature 80°C
Net Weight 12 g
Item ID CUP-E16
Material NdFeB
Pot diameter (D) 0.63 "
Distance to the center of the hook (H2) 1.181 "
Hook opening width (a) 0.295 "
Pot height (H1) 0.205 "
Thread M M4 Threaded open hook
Coating Nickel-plated (Ni)
Steel Q235 (China)
Pull Force approx. 12.125 lbs ( approx. 53.9 N)
Max. working temperature 80°C
Net Weight 0.423 oz
Product Details...

Item Description

Cup magnet (diameter 16 mm × height 30 mm ) with threaded stem and female thread M4. The magnet is embedded in a steel pot in order to increase the adhesive force. The indicated adhesive force is referring to ceiling suspension (adhesive force perpendicular to the surface).

With these strong magnetic hooks, you can conveniently attach office and kitchen utensils, clothing, etc. to ferromagnetic surfaces.

Technical Documentation

  • If you can’t find what you want,just send us an inquiry and we will be happy to make it for you!
