The neodymium pot magnets have a high clamping force. They support a maximum working temperature of 80ºC and on request we can supply parts for maximum working temperatures of 150ºC.

Eyelet magnet Ø 48 mm - Holds 81 kgs

Item Code: CUP-F48
Description

Pot magnet with eyelet hook, ø = 48 mm, magnet made of neodymium, pot made of steel, nickel-plated, strength approx. 81 kgs.

Item code
CUP-F48

further product details

Ready for dispatch
on stock
Item Code D Pot height (H1) Distance to the center of the hook (H2) Eyelet inside diameter (d) N.W. Power
kgs
CUP-F10 10 5.2 30 7.5 12 5.5
CUP-F20 20 7.2 32 7.5 21 9
CUP-F25 25 7.7 32 8.5 33 22
CUP-F32 32 7.8 36 10 54 34
CUP-F36 36 7.6 36 10 64 41
CUP-F42 42 8.8 37 10 93 68
CUP-F48 48 10.8 45 11 150 81
CUP-F60 60 15 50 11 283 113
Item Code D Pot height (H1) Distance to the center of the hook (H2) Eyelet inside diameter (d) N.W. Power
kgs

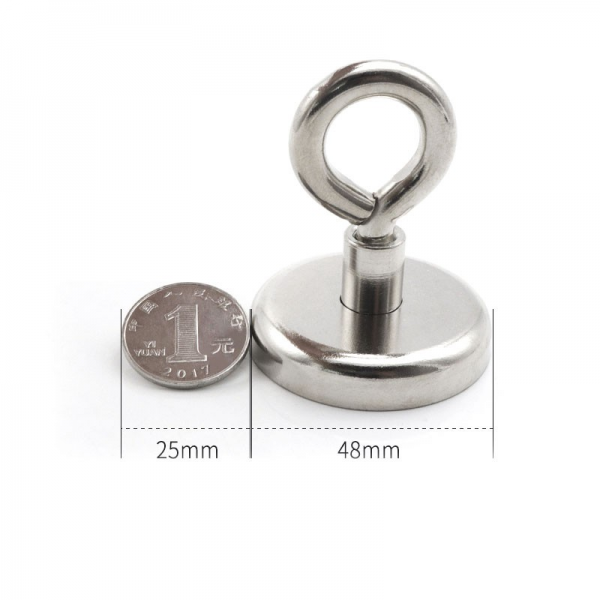

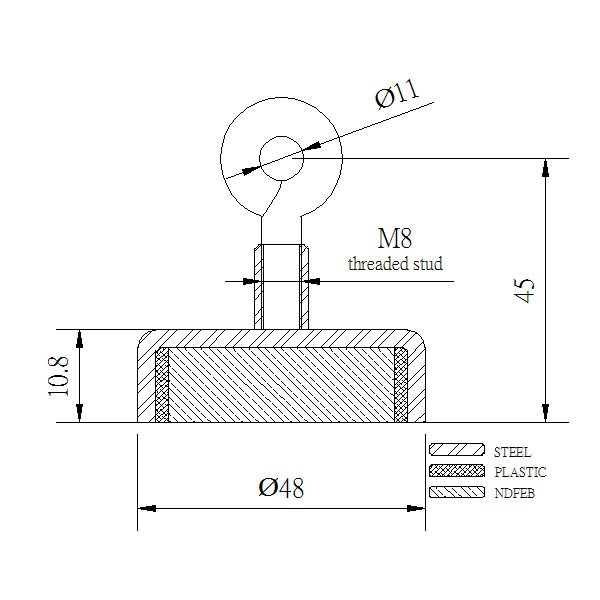

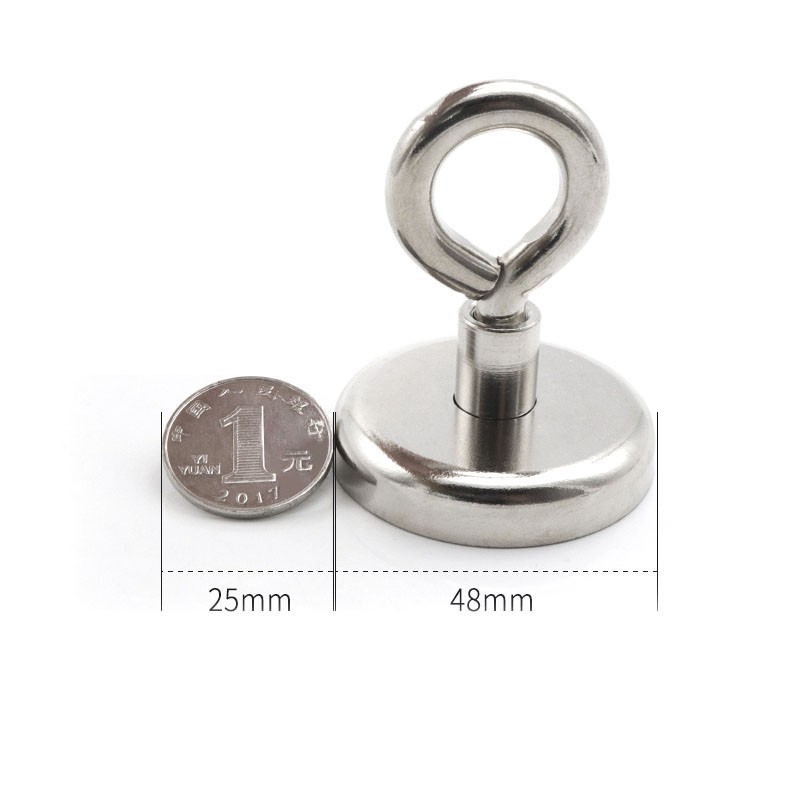

This neodymium magnet with removable eye bolt measures 48 mm (diameter) x 45 mm (height). The threaded shaft opening is 8 mm (M). It has a pull force of 81 kg (approx. 178.573 lbs).

You can use this magnet to fish steel items from ponds or lakes. You can also use it to fix the electrical cables or signs to steel surfaces. The eye bolt is connected to the base with thread so you can replace it with your own design.

Please send us an inquiry for order to [email protected]
