Quick Info...

The neodymium pot magnets have a high clamping force. They support a maximum working temperature of 80ºC and on request we can supply parts for maximum working temperatures of 150ºC.

Eyelet magnet Ø 42 mm - Holds 68 kgs

Item Code: CUP-F42
Description

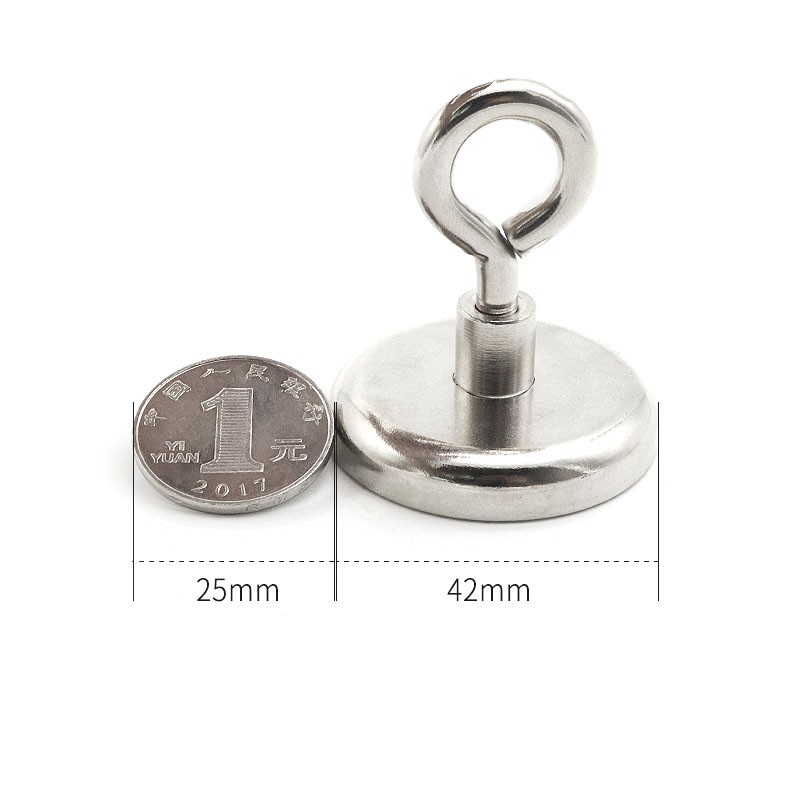

Pot magnet with eyelet hook, ø = 42 mm, magnet made of neodymium, pot made of steel, nickel-plated, strength approx. 68 kgs.

Item code
CUP-F42

further product details

Ready for dispatch
on stock
Item Code D Pot height (H1) Distance to the center of the hook (H2) Eyelet inside diameter (d) N.W. Power
kgs
CUP-F10 10 5.2 30 7.5 12 5.5
CUP-F20 20 7.2 32 7.5 21 9
CUP-F25 25 7.7 32 8.5 33 22
CUP-F32 32 7.8 36 10 54 34
CUP-F36 36 7.6 36 10 64 41
CUP-F42 42 8.8 37 10 93 68
CUP-F48 48 10.8 45 11 150 81
CUP-F60 60 15 50 11 283 113
Item Code D Pot height (H1) Distance to the center of the hook (H2) Eyelet inside diameter (d) N.W. Power
kgs

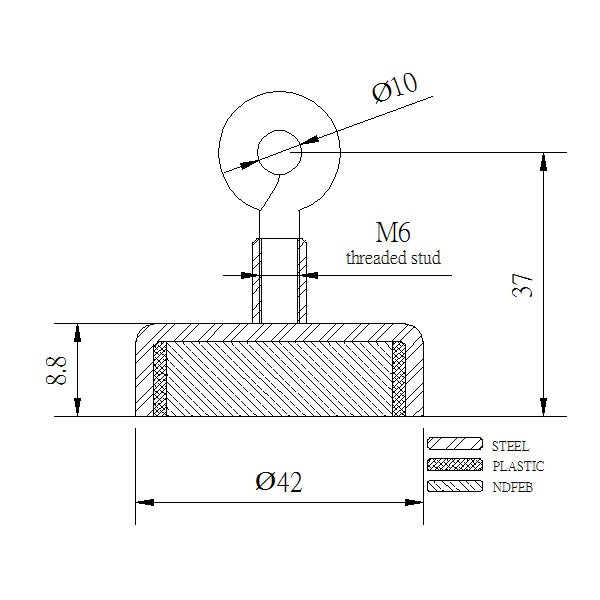

These magnetic cup magnets hook (diameter 42 mm × height 37 mm ) have a threaded shaft and an attached eye bolt. They have a very strong rare earth magnet set in a mild steel cup for extra protection against chipping or cracking. Due to the protective cover on these magnets, the magnetic force is concentrated on one side only. The threaded eye bolt can be removed with M6 thread.

The holding power of 68 kg (approx. 149.913 lbs) is under the direct contact with the steel.

The applications of this cup magnet include magnetic holding, lifting, antenna Mounting, positioning, retrieving, lake or river magnet fishing.

Please send us an inquiry for order to [email protected]
